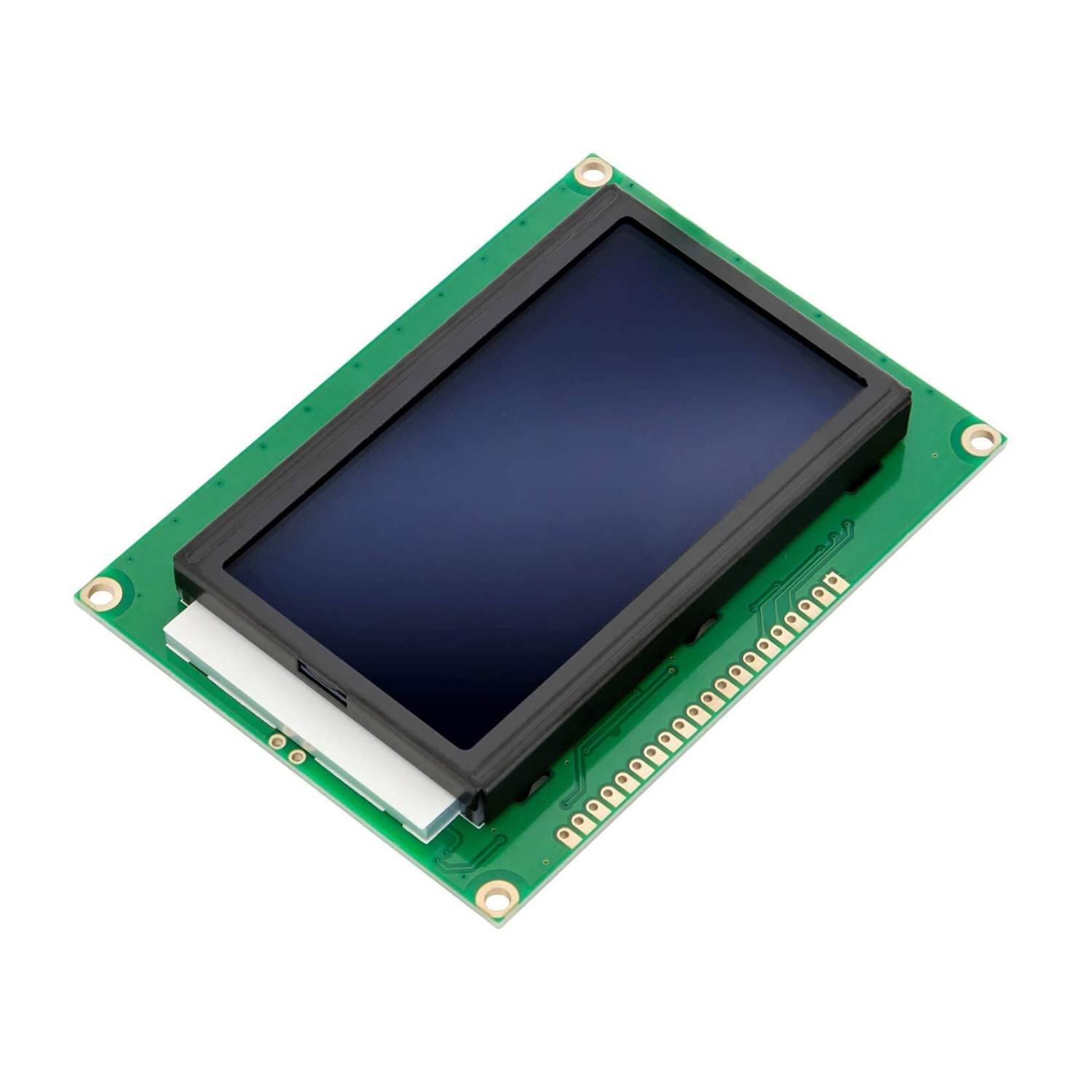

This is a standard 128x64 dot matrix graphic LCD module, model 12864B V2.0, powered by 5V with blue backlight and built-in Chinese character library. It supports both parallel and serial communication interfaces, making it ideal for microcontroller projects, embedded systems, industrial control, and DIY applications. The compact design includes mounting holes at each corner for easy panel installation. Its high-contrast blue screen remains clearly readable even in low-light conditions, offering a superior alternative to traditional character-based LCDs.
Product Parameter
Power Supply: VDD 5V (Built-in boost circuit, no negative voltage required)
Display Resolution: 128 columns × 64 rows
Display Color: Blue screen
Viewing Direction: 6 o'clock viewing angle
LCD Type: STN
MCU Interface: 8-bit / 4-bit parallel, or 3-bit serial
Software Functions: Cursor display, screen shifting, custom character generation, sleep mode, etc.
Overall Dimension: 93×70×12.5mm
Active Display Area: 72×40mm
Weight: Approx. 71g
This display module works with various microcontrollers to render Chinese characters, English letters and graphics, supporting the development of Chinese graphical human-machine interaction interfaces. Featuring low power consumption and rich display content, it is widely adopted across multiple industries.
The screen relies on processed liquid crystal to alter light propagation direction. Electric current excites liquid crystal molecules to form dots, lines and planes, which together with the backlight create complete images. It boasts a resolution of 128×64.
It integrates a 2-Mbit Chinese Character Generator ROM (CGROM) storing 8192 16×16 dot-matrix Chinese characters, plus a 16-Kbit Half-width Character ROM (HCROM) containing 128 sets of 16×8 dot-matrix ASCII characters, enabling display of 8 columns × 4 rows of 16×16 Chinese characters.
The ST7920 Character Generator RAM (CGRAM) supports custom character creation, offering storage space for 4 groups of 16×16 dot-matrix custom fonts. Users write character codes to the Display Data RAM (DDRAM); the hardware then fetches corresponding font patterns from CGROM and outputs them on screen.
The Graph RAM allocates 64×32 bytes as a 2D drawing buffer, which controls a 256×64 dot-matrix drawing area.
Multiple interface options are available: 4-bit / 8-bit parallel (compatible with M6800 timing), 2-wire serial and 3-wire serial.

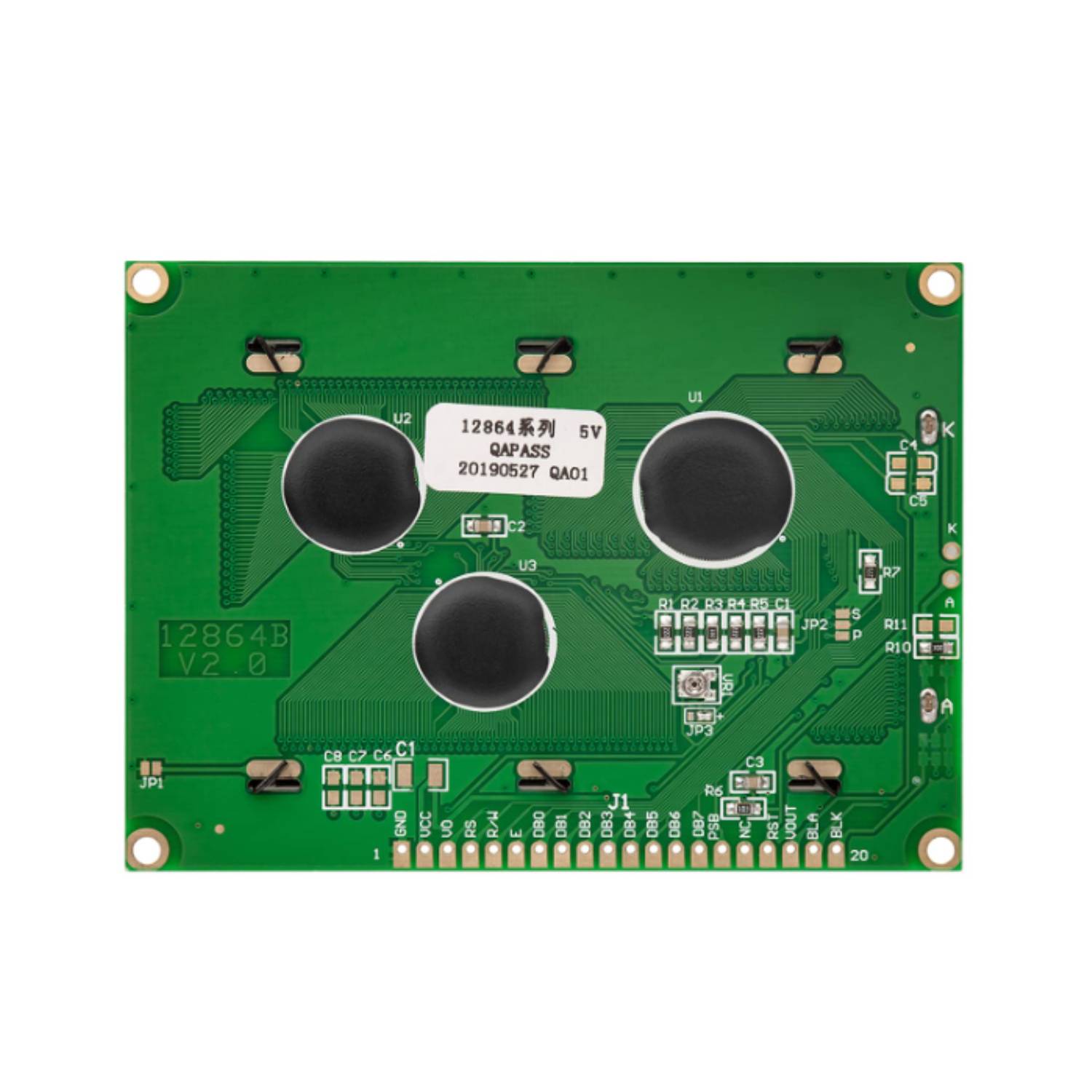

Internally, the LCD12864 module consists of an LCD panel, controller, driver and bias voltage generation circuit.
