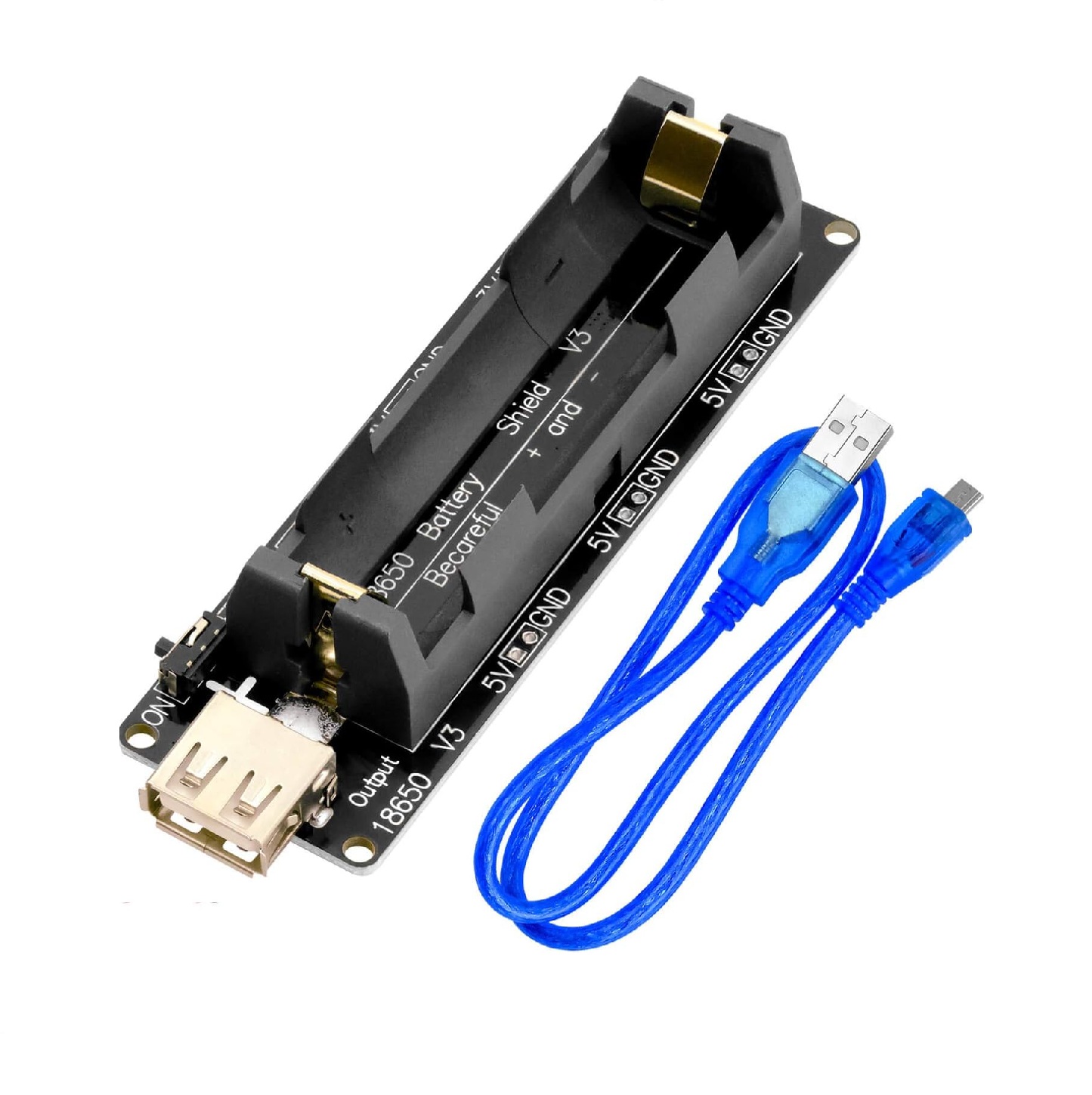

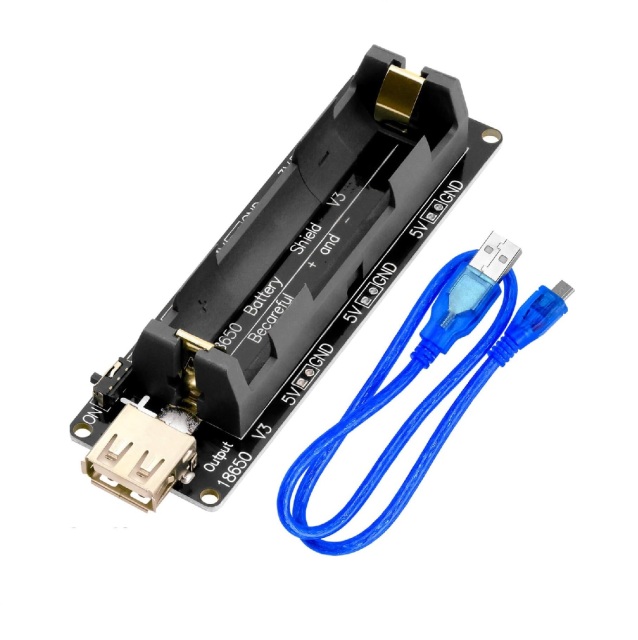

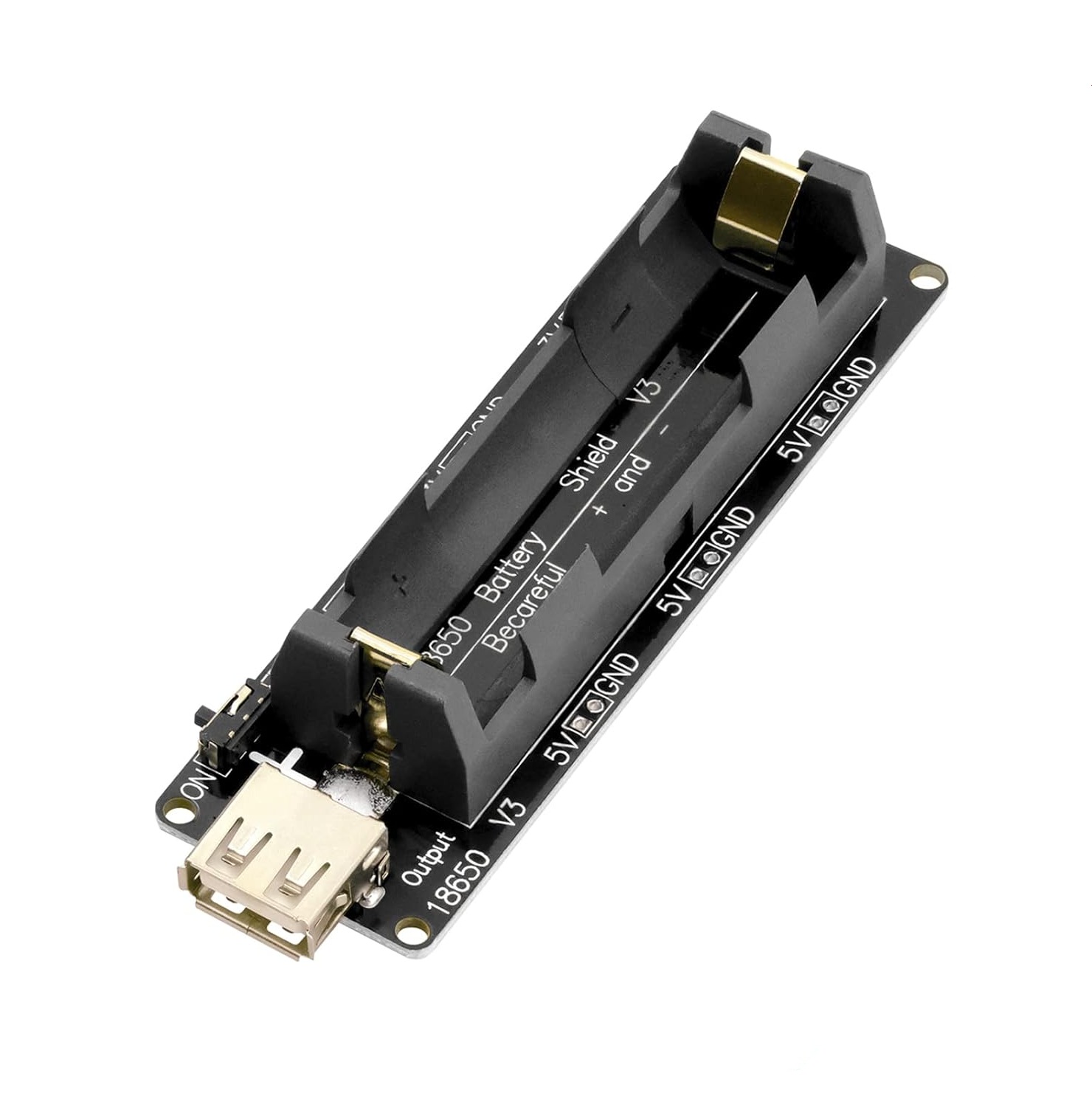

18650 battery holder V3 development board compatible with Raspberry Pi 3 overcharge protection 5V

No.MR-257
This 18650 Battery Holder Board V3 is a compact power solution designed to provide a portable 5V power supply for your electronics projects. It features a built-in charging and protection circuit, allowing you to safely charge and discharge 18650 lithium batteries via a standard Micro USB connection.

Description

The 18650 Battery Shield has now been updated to V3. You can use this battery shield to power many products such as the Raspberry Pi. This version of the 18650 shield features built-in protection. With an output current up to 2A, I believe this will be a valuable project for your needs.

What makes it special?

  • Battery Protection: Prevents overcharging and over-discharging
  • Micro USB Port: For input power
  • Type A USB Output: For power supply to devices
  • Charging Current: 0.5A input charging
  • USB Output Switch: Independent control for USB output
  • Input Voltage Range: 5V ~ 8V
  • Output Specifications: 3.3V/1A output, 5V/2A maximum output
  • LED Indicators: Green for powered on, Red for charging
  • 3.3V Output Ports: 3 ports available (×3)
  • 5V Output Ports: 3 ports available (×3)
