Electric meter pulse data sampling
2. Fax machine, paper shredder, paper inspection
3. Obstacle Detection
4. Black and White Line Detection
Product Introduction:

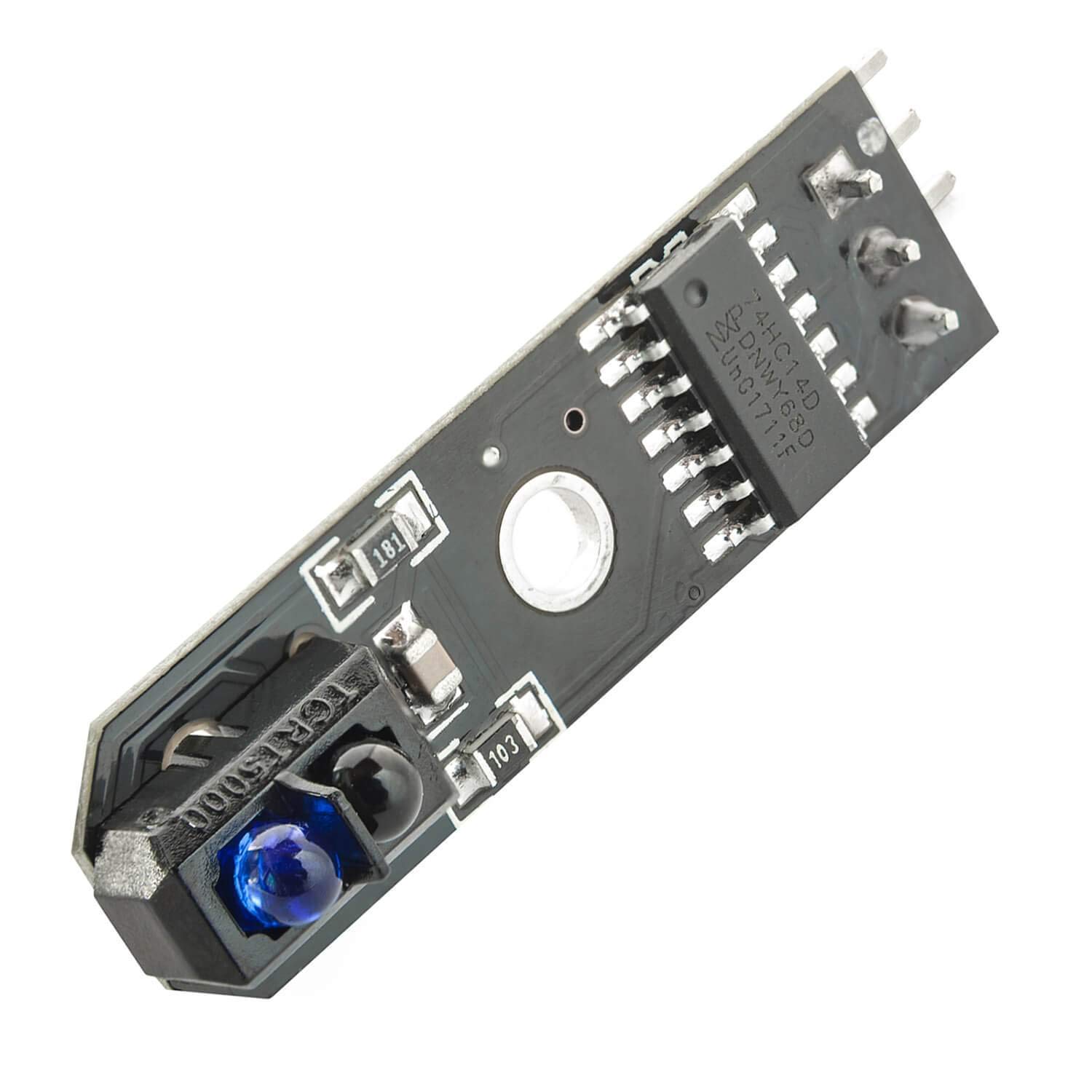

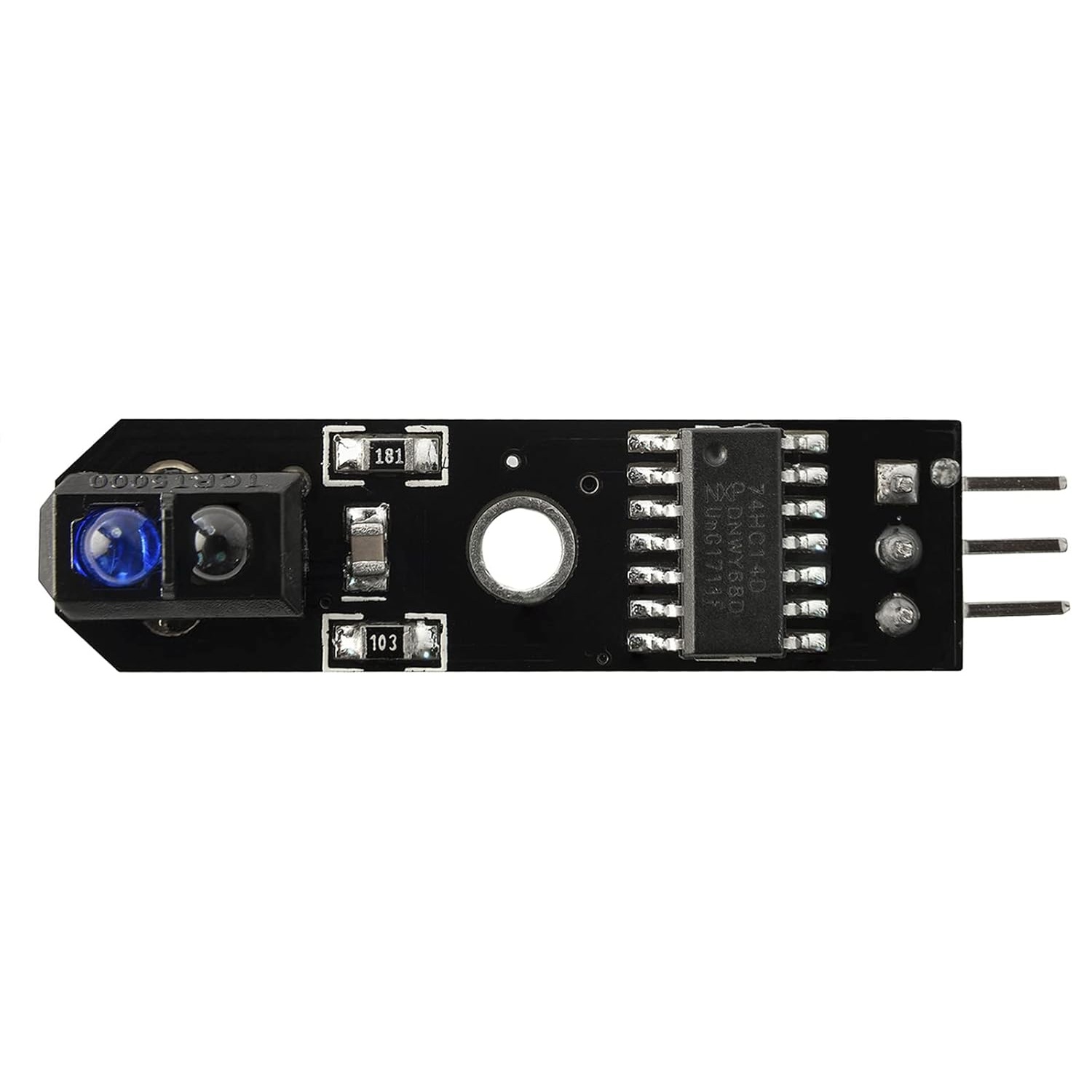

1.Using the TCRT5000 infrared reflective sensor
2. Detection range: 1mm to 25mm applicable
3. Operating Voltage: 5V
4. Output format: Digital signal (0 and 1)
5. Equipped with fixed bolt holes, facilitating installation.
6. Size of the small board PCB: 3.5cm x 1cm
7. Single: 4.5g
Function Introduction:
The infrared emitter diode of the TCRT5000 sensor continuously emits infrared rays. When the emitted infrared rays are not reflected back or are reflected back but with insufficient intensity, the infrared receiver diode remains in the off state. At this time, the output terminal of the module is at a low level, indicating that the diode is always in an off state. When an object to be detected appears within the detection range, the infrared rays are reflected back and have sufficient intensity, and the infrared receiver diode is saturated. At this point, the output terminal of the module is at a high level, indicating that the diode is lit up.

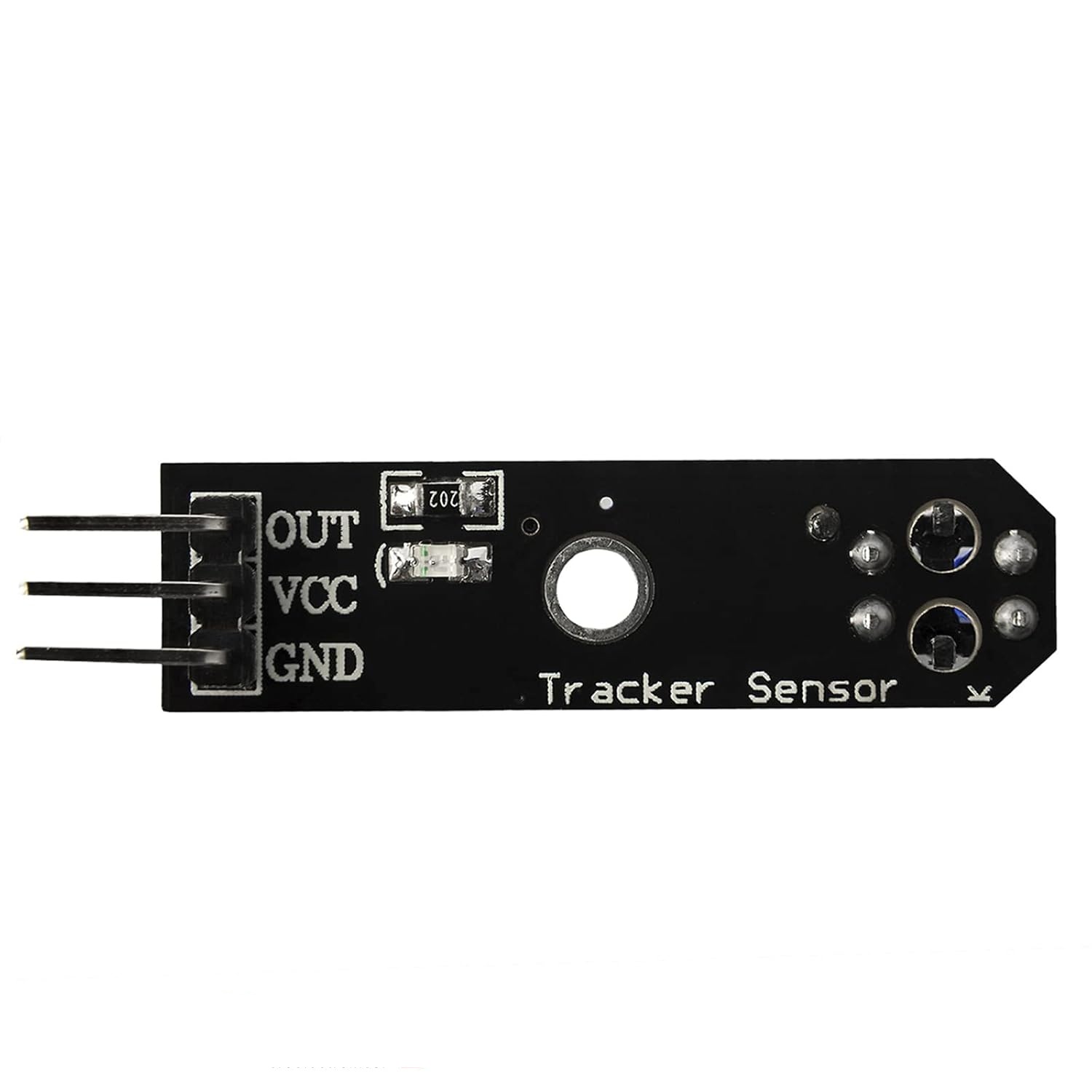

Connection method:
1. VCC: Connect to the positive terminal of the power supply (5V)
2. GND: Connect to the negative terminal of the power supply
3. OUT: High/Low level switch signal (digital signal 0 and 1)
