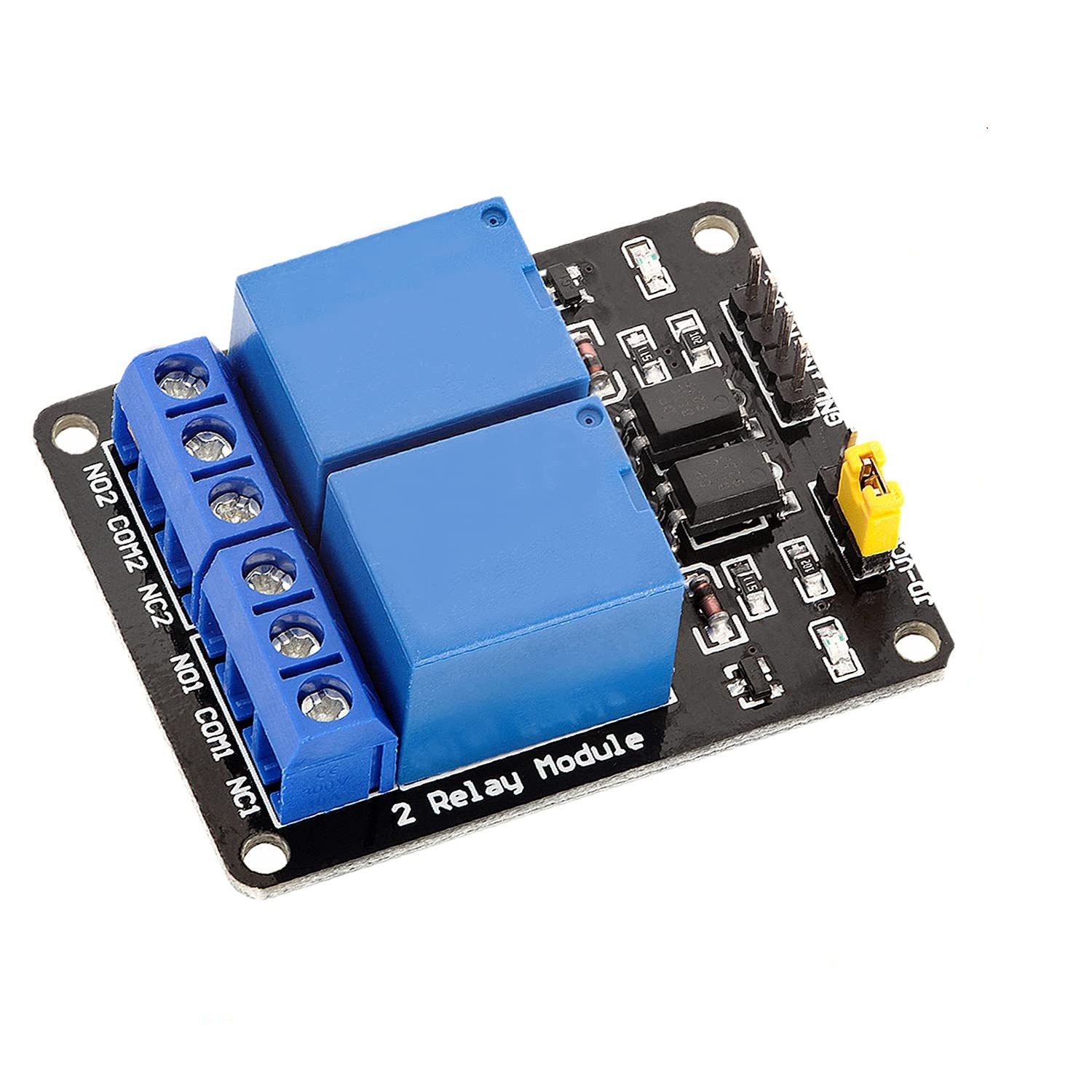

2-Channel Optocoupler Isolation Relay Module (DC5V) PLC Industrial Control Board with NO/NC Dual-Channel Switch - Bulk Supply

Module parameters:
1. Dimensions: 50.5mm (length) * 38.5mm (width) * 18.5mm (height)
2. Weight: 31g
3. PCB color: Black

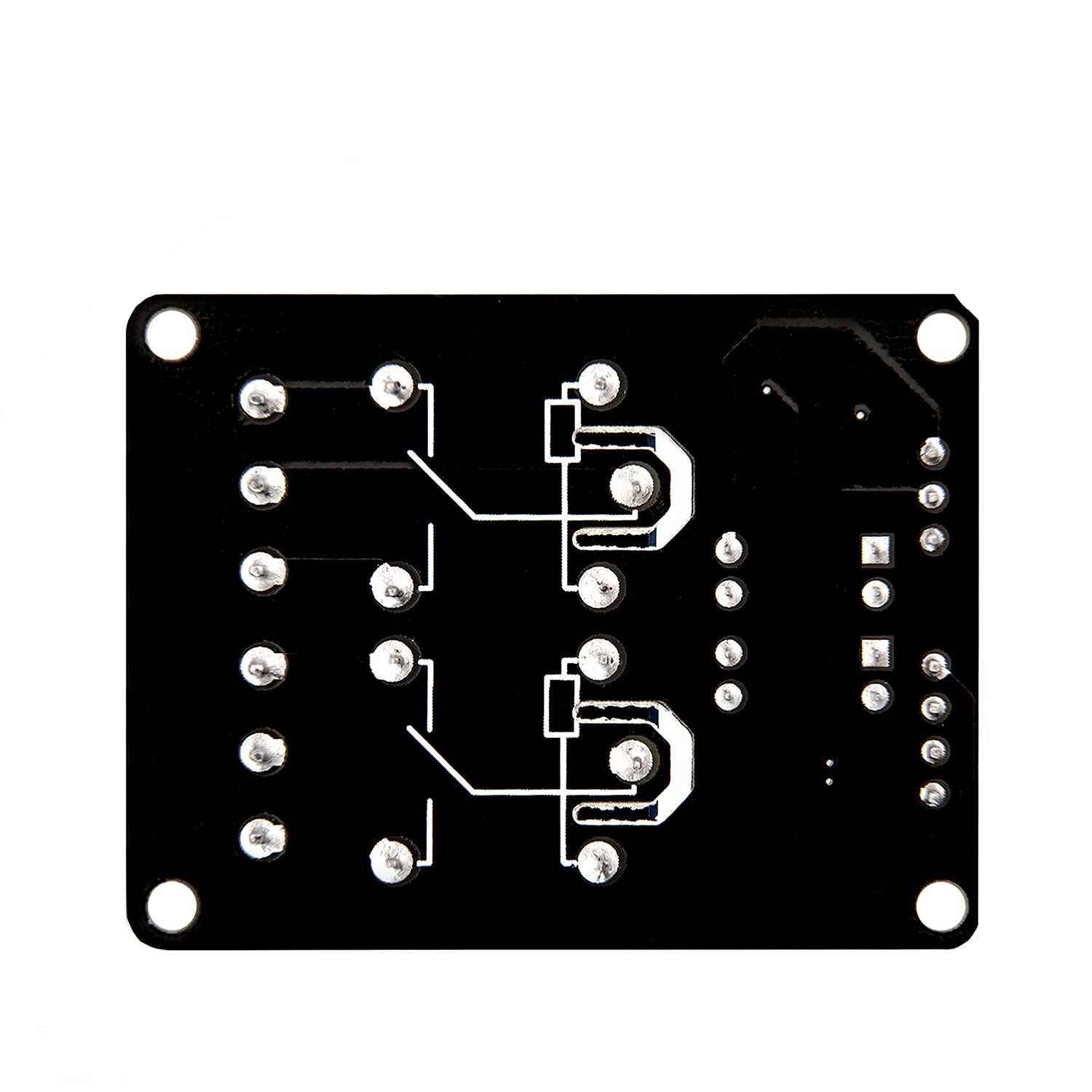

4. The board has 4 fixing screw holes around the edges, with a hole diameter of 3.1mm, facilitating installation and fixation
5. The relay is selected as a high-quality Songle relay, single-pole double-throw. It has one common terminal, one normally open terminal, and one normally closed terminal
6. Optical isolation, good anti-interference performance
7. Low-level suction, high-level release. The status indicator light is on when suction occurs, and off when release occurs
8. VCC is the system power supply, JD_VCC is the relay power supply. Just insert the jumper cap to connect
Electrical parameters:
Power supply voltage: 5VDC, 12VDC
Current: greater than 100mA
Load: 250V 10A AC or 30V 10A DC

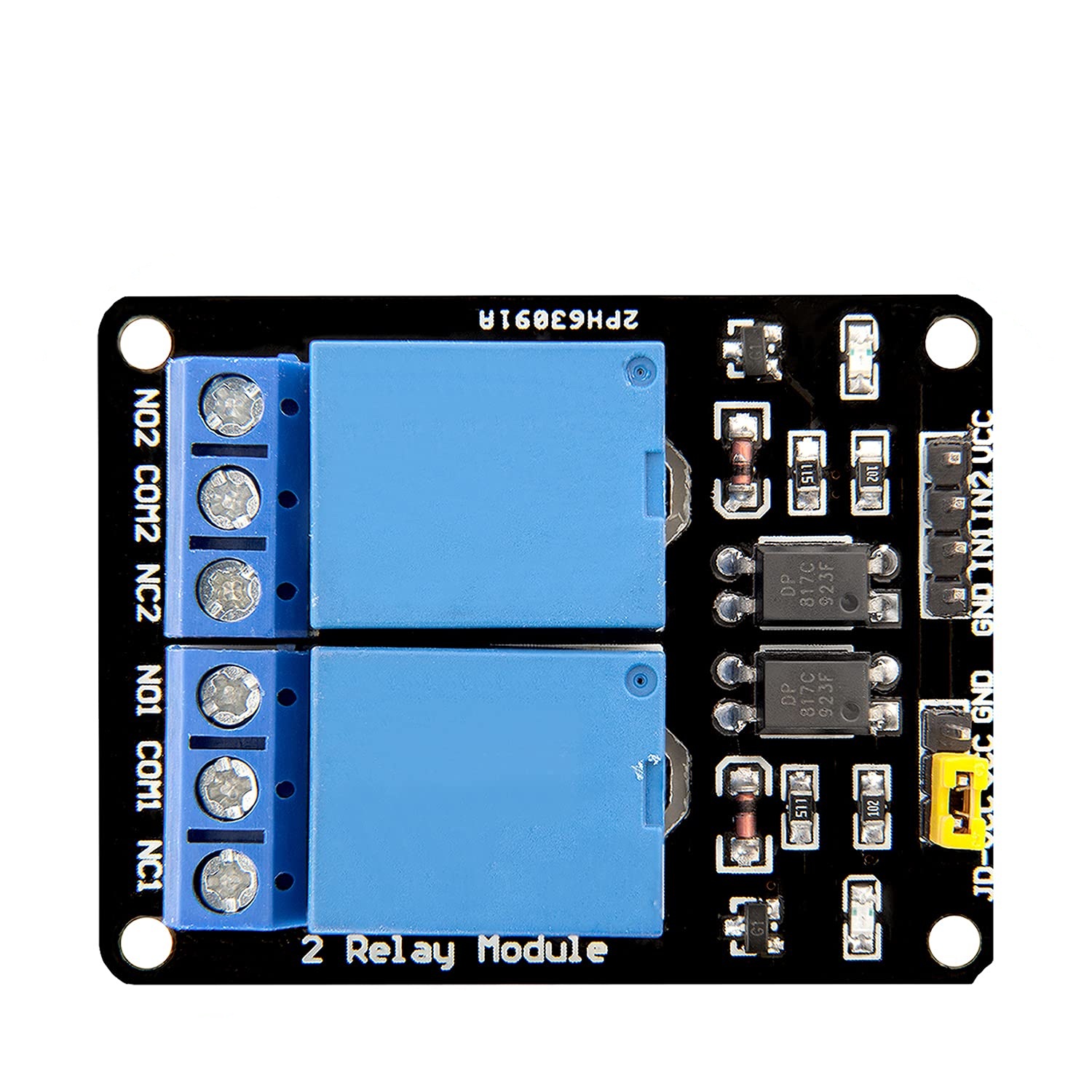

Connection instructions:
VCC: Positive terminal of the system power supply
GND: Negative terminal of the system power supply
IN1--IN2: Relay control terminals
