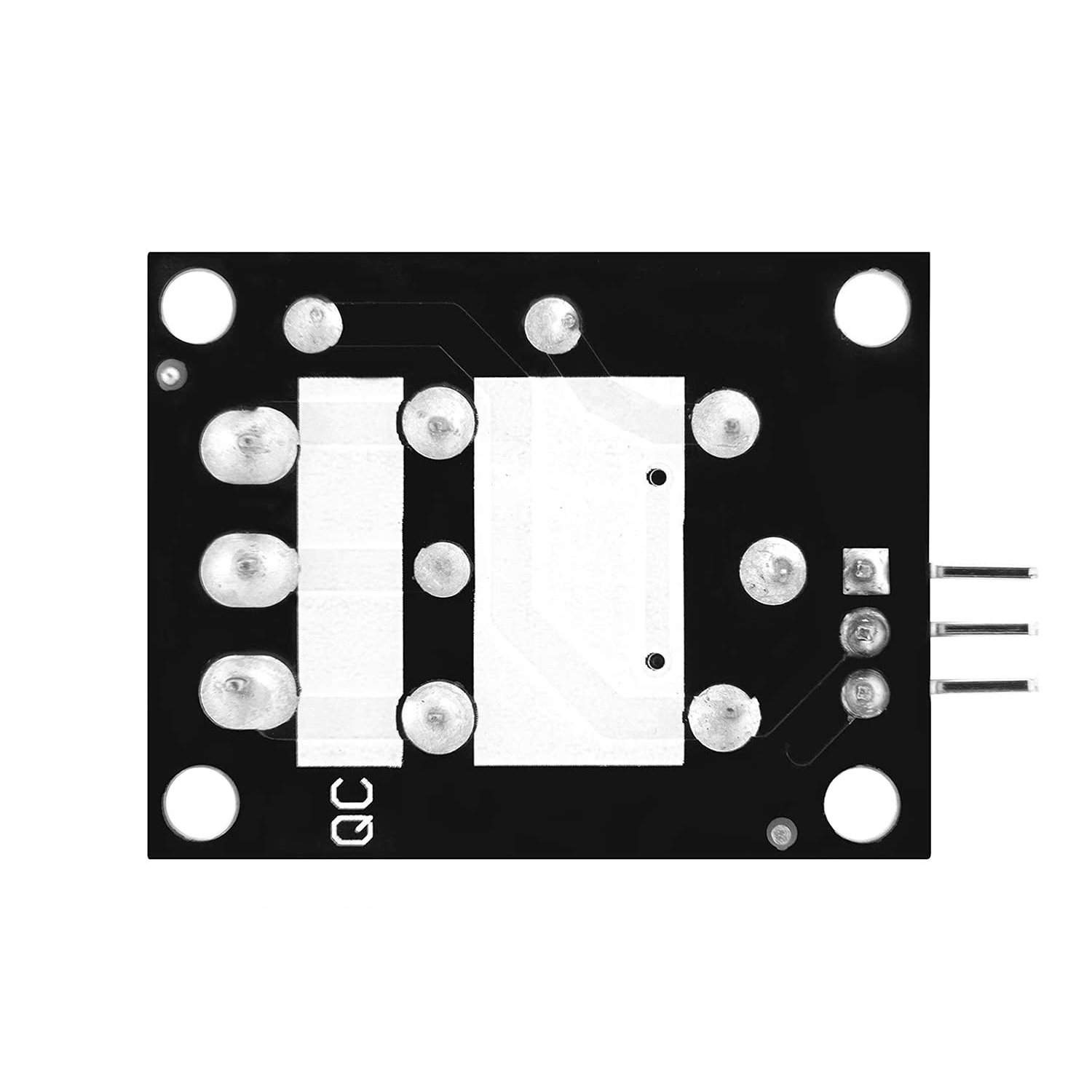

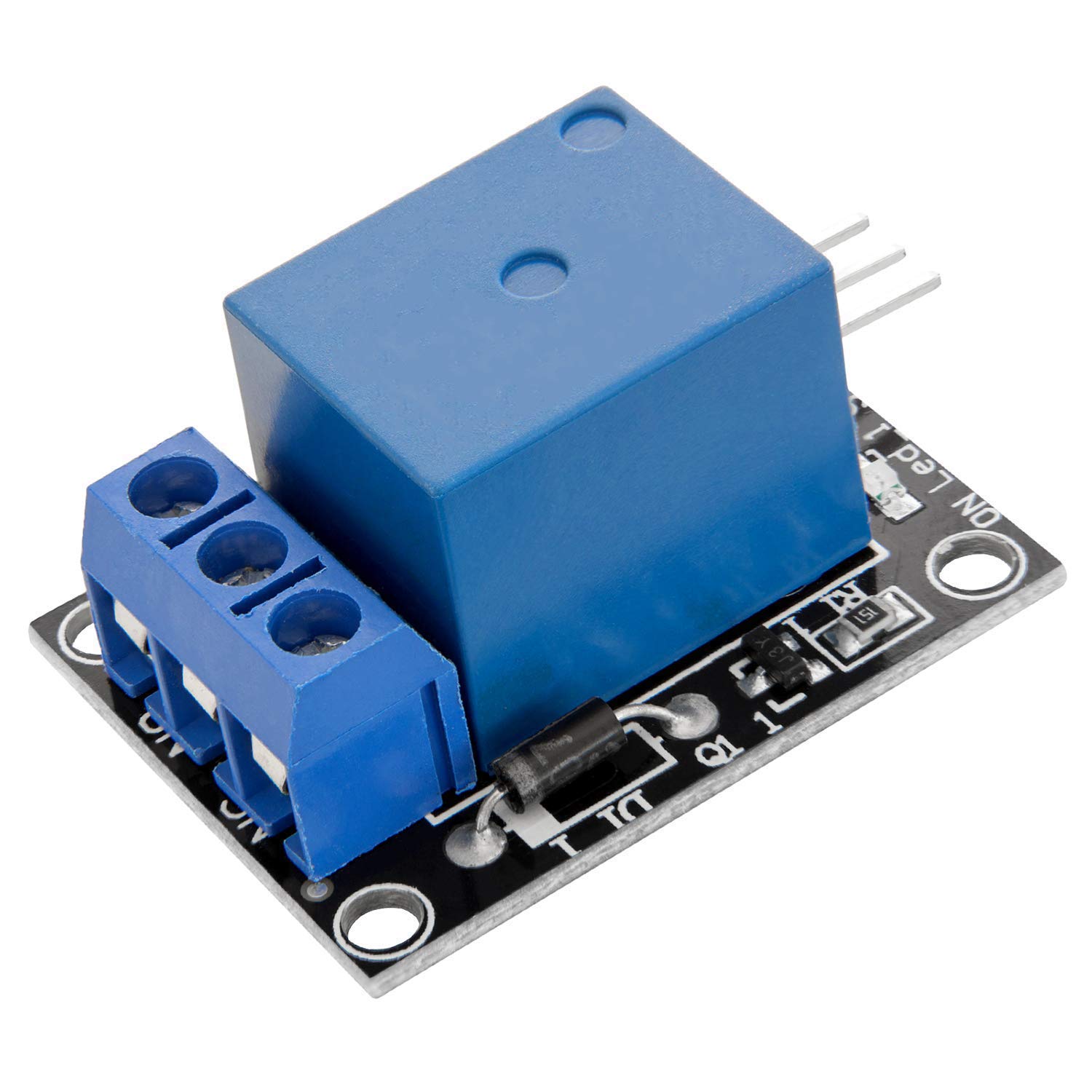

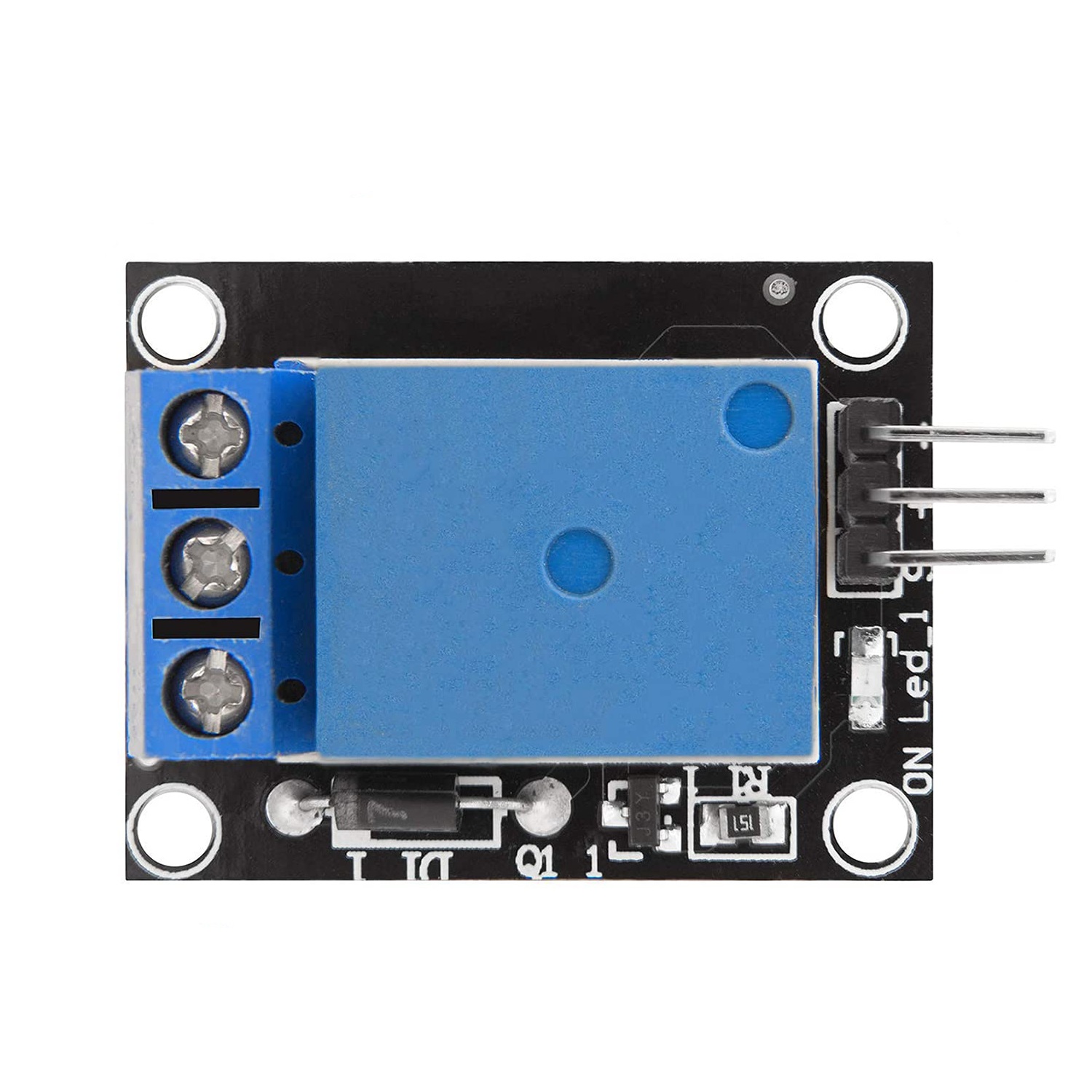

KY-019 5V Single-Channel Relay Module - High-Level Trigger Control Board for MCU & Industrial Automation

Technical Specifications

1. Operating Voltage: DC 5V
2. Relay Control Capacity: 10A 250VAC / 10A 30VDC
3. Active Level Control: High-level control is active
4. Pin Description:
   • +: Positive power supply
   • -: Negative power supply
   • S: Signal input

     5) Relay Interface Description

     • NC: Normally Closed Terminal
     • COM: Common Terminal
     • NO: Normally Open Terminal

       Main Applications:

       1. Expand control range: When the control signal of a multi-contact relay reaches a certain value, it can switch, commutate, and connect multiple circuits simultaneously through different forms of contact groups.
       2. Amplification: A very small control quantity can be used to control the on/off of a high-power circuit.
       3. Signal integration: When multiple control signals are input to a multi-winding relay in a specified manner, a predetermined control effect is achieved through comparison and integration.
       Automation, remote control, and detection: Relays in automatic devices, together with other electrical components, can form programmed control circuits to realize automated operation.



       Relay Switch Description

       1. When the relay coil is de-energized, the relay remains open, and the common terminal (COM) is connected to the normally closed terminal (NC). When voltage is applied, the relay pulls in, and the common terminal (COM) is connected to the normally open terminal (NO).
