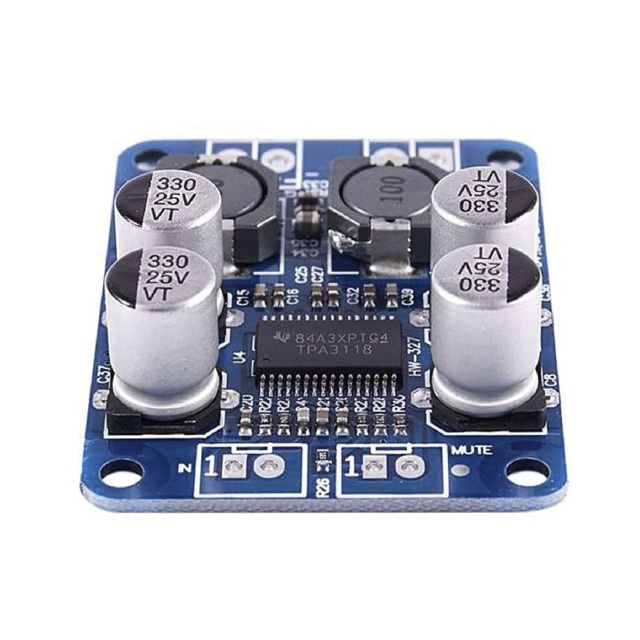

his Class D mono audio amplifier module adopts professional TPA3118 audio chip with PBTL parallel bridge-tied load design, providing stable 60W high-power output for single-channel speakers. It supports wide DC 8V-24V input voltage, compatible with 12V/24V power adapters and lithium battery packs.

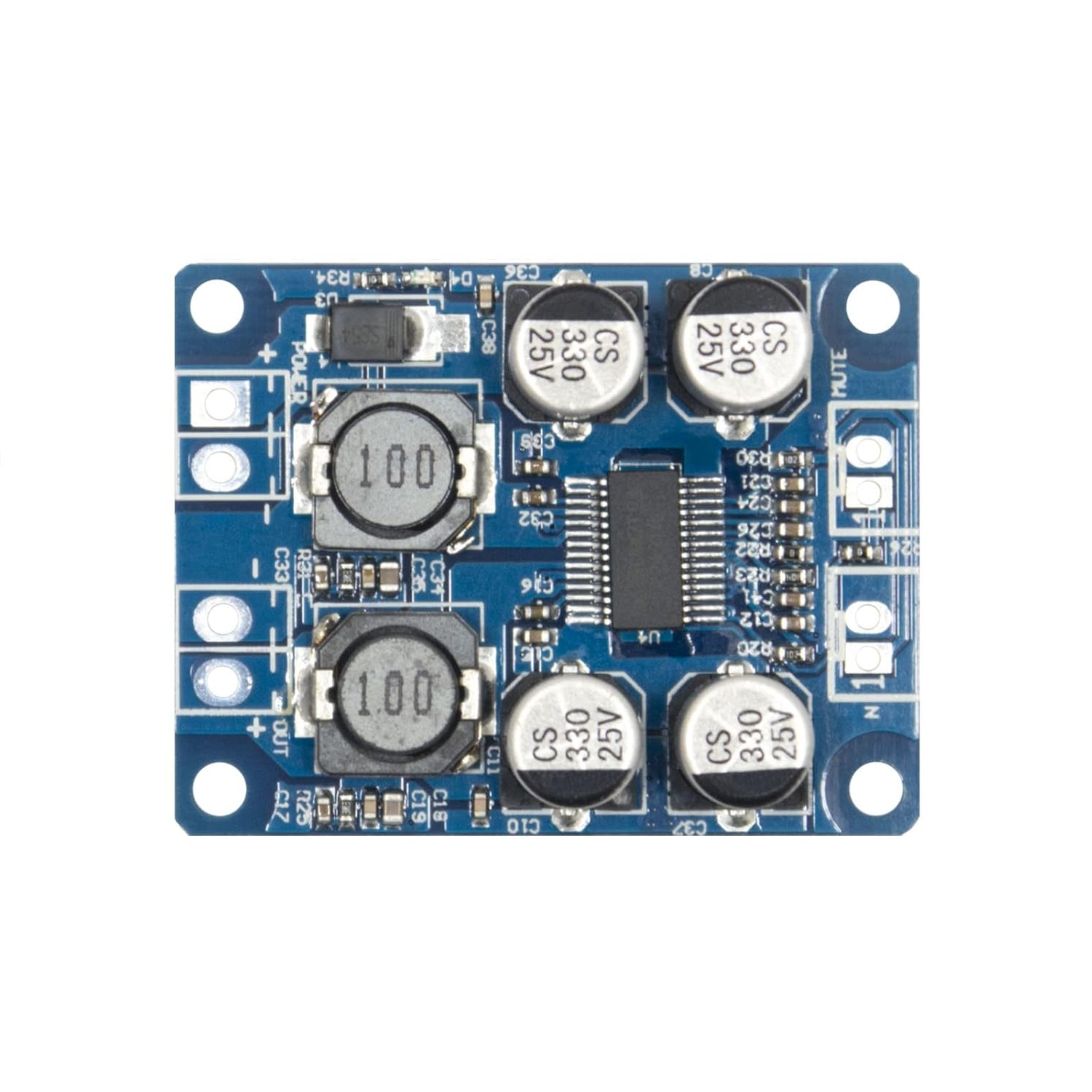

The circuit board measures 46mm × 35mm with compact layout, reserved independent mute control pins for external switch mute operation. It reaches up to 90% energy conversion efficiency, bringing much lower heat than traditional analog amplifiers. Multiple safety protections including short-circuit, overheat and over-current are integrated to avoid damage of speakers and the module itself.
It is widely applied to subwoofers, car audio systems, home passive speakers and various DIY audio amplifier projects.

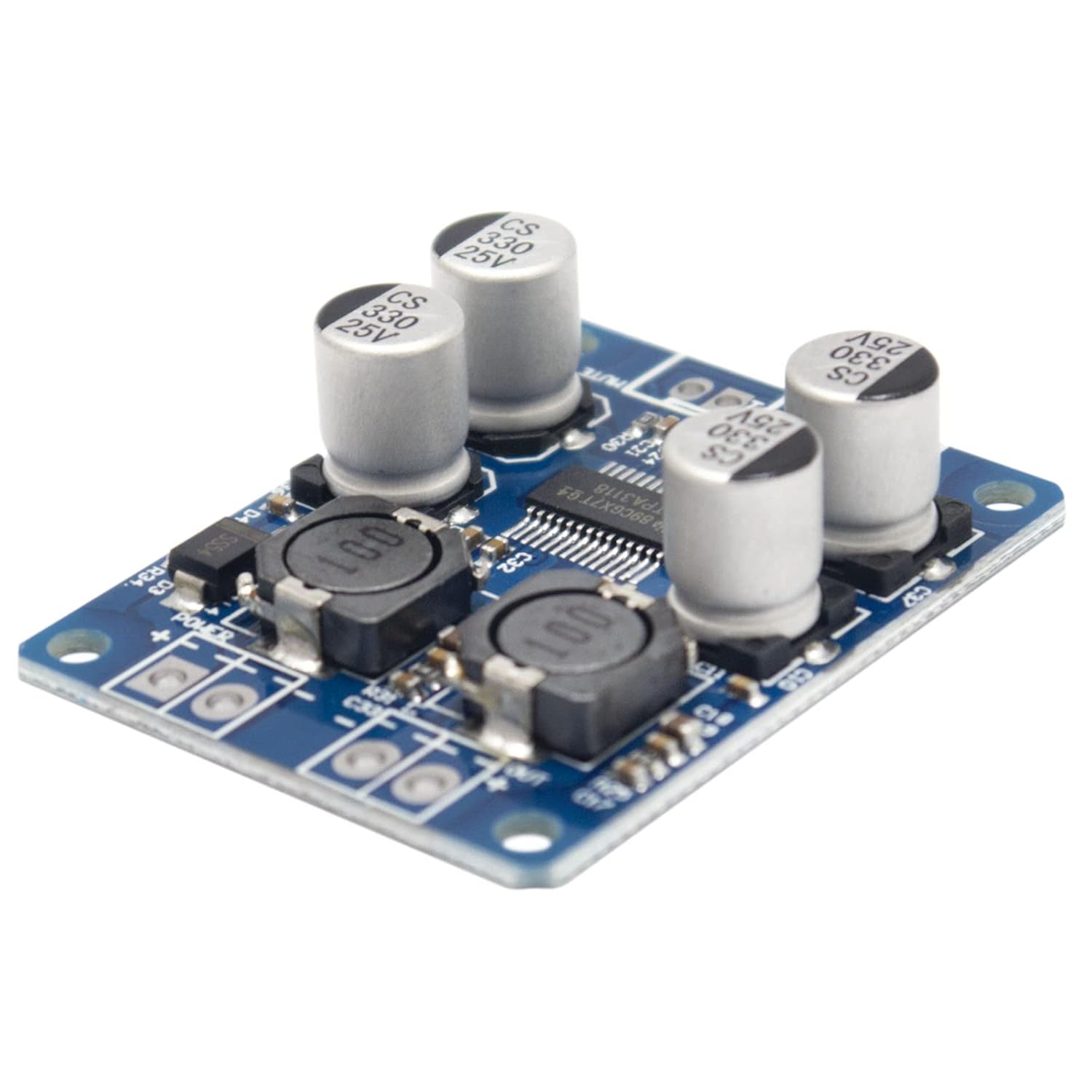

kernel parameter
1、Chip model: TPA3118
2、Output power: 60W RMS (at 24V supply and 4Ω load); approximately 30W at 12V supply
3、Operating voltage: DC 8V - 24V (12V or 24V is recommended for optimal performance)
4、Load impedance: Supports 4Ω - 8Ω speakers
5、Operating mode: PBTL (mono high-power output), non-stereo
6、Efficiency: >90% (D-class amplifier characteristic, low heat generation)
7、Protection functions: Over-temperature protection, short-circuit protection, under-voltage lockout

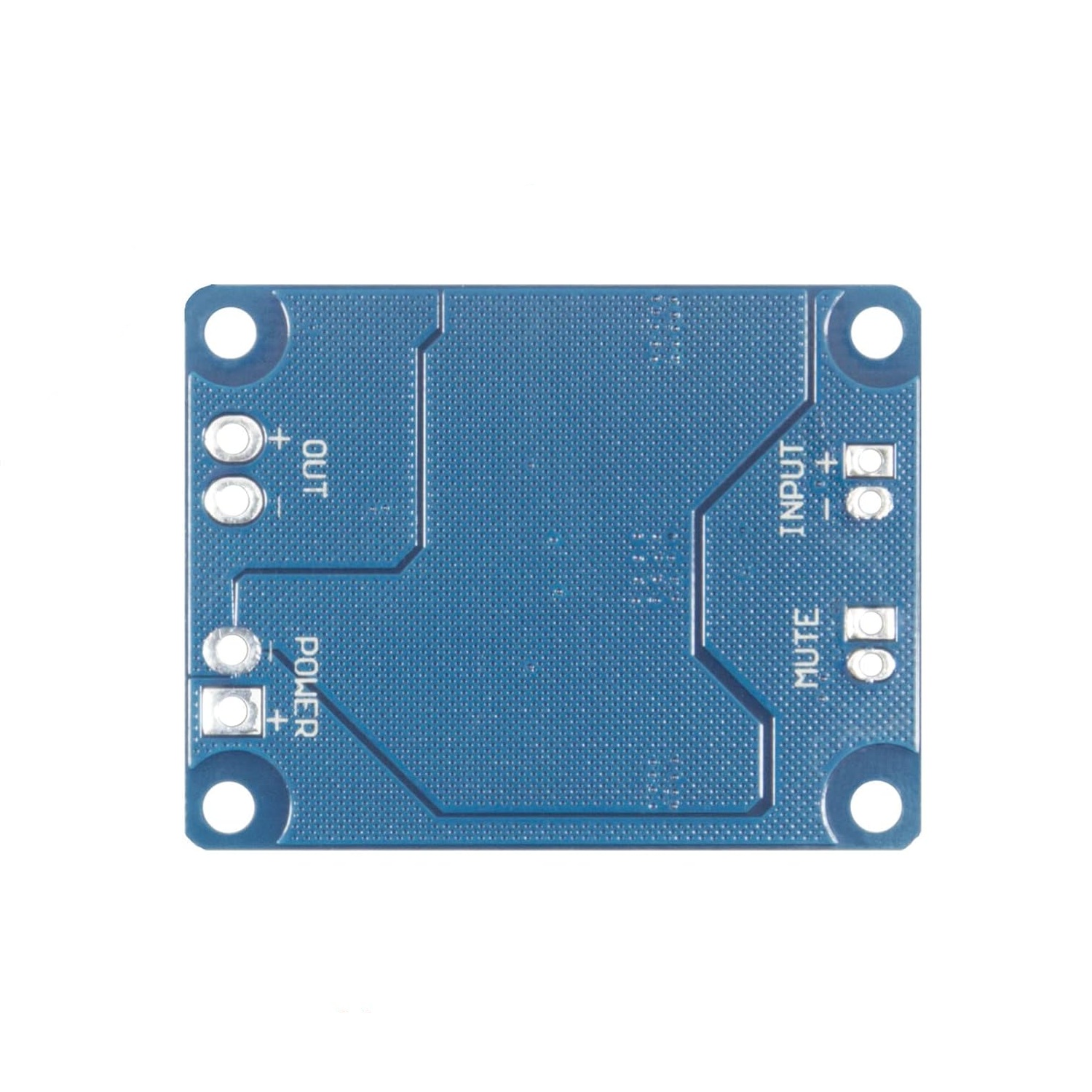

8、Control interface: MUTE pin (high voltage for mute), POWER indicator light

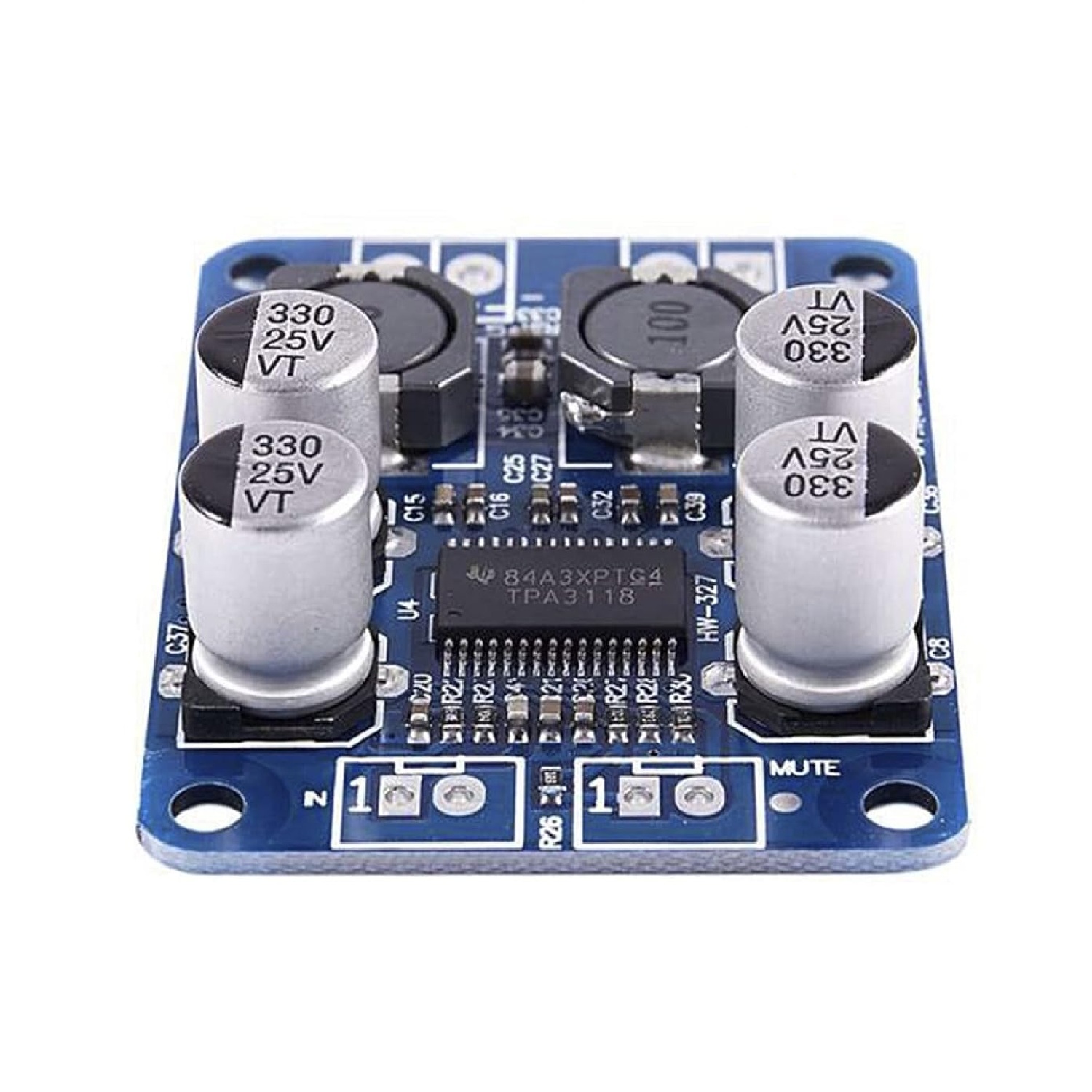

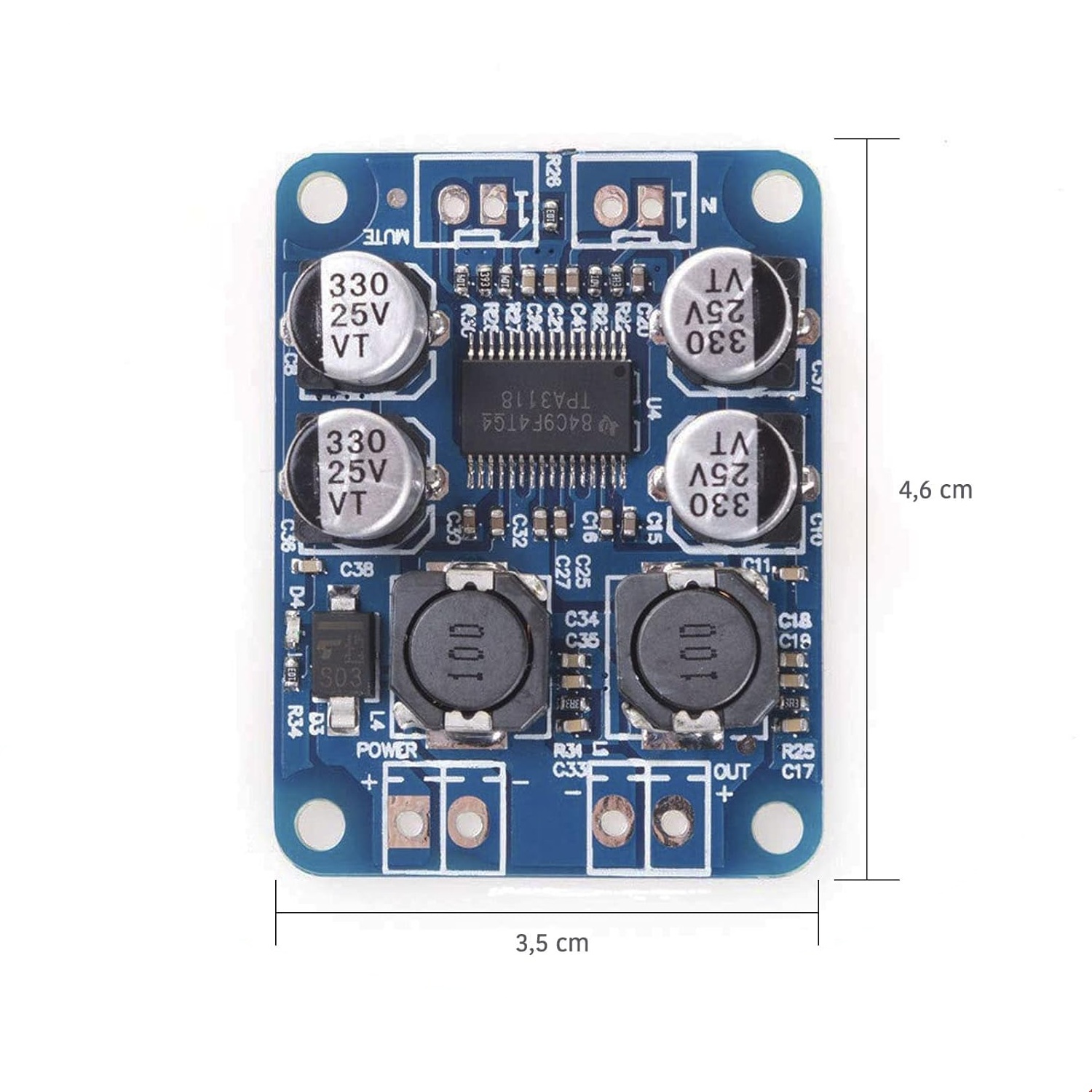

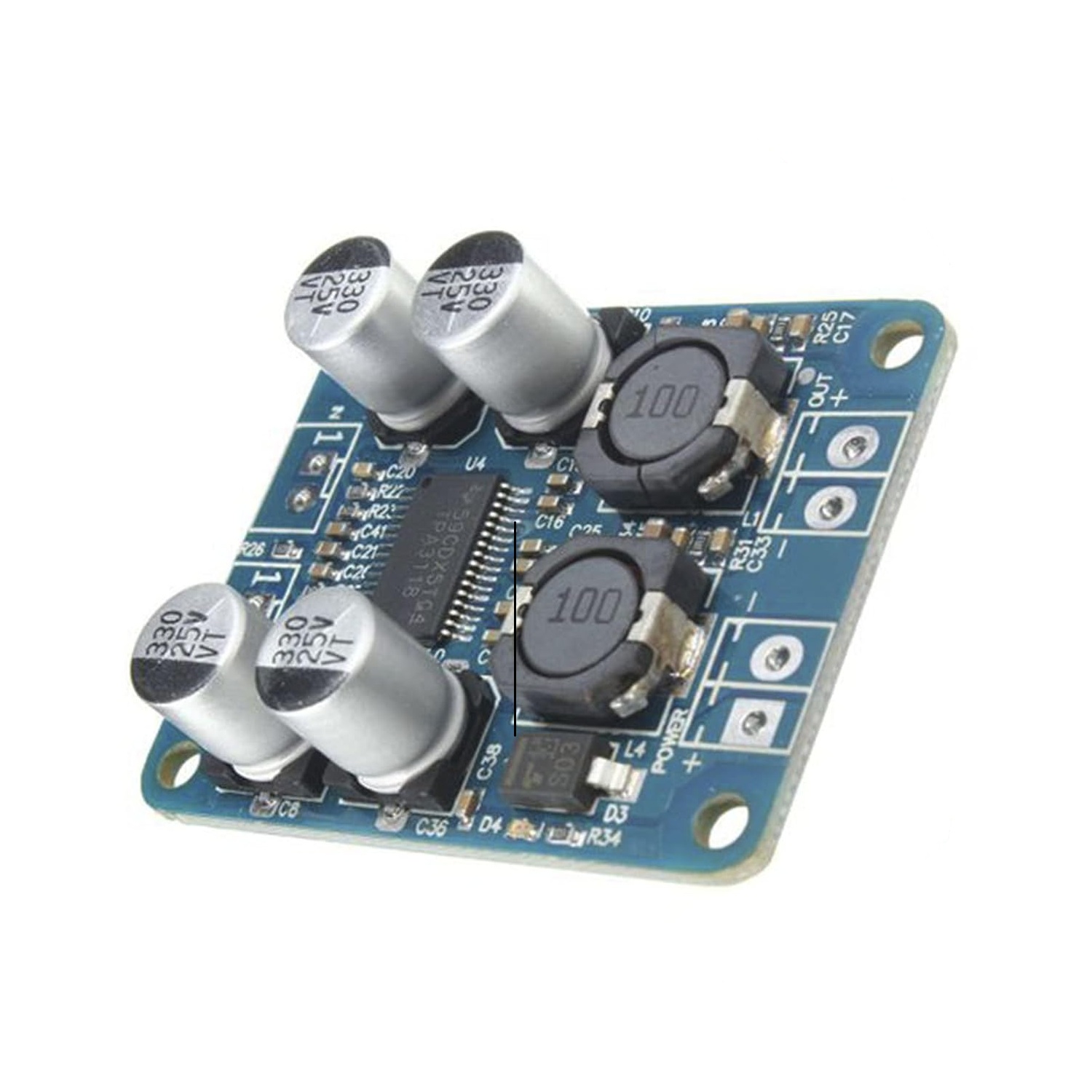

9、Size: Approximately 46mm × 35mm × 12mm (including capacitor height)
