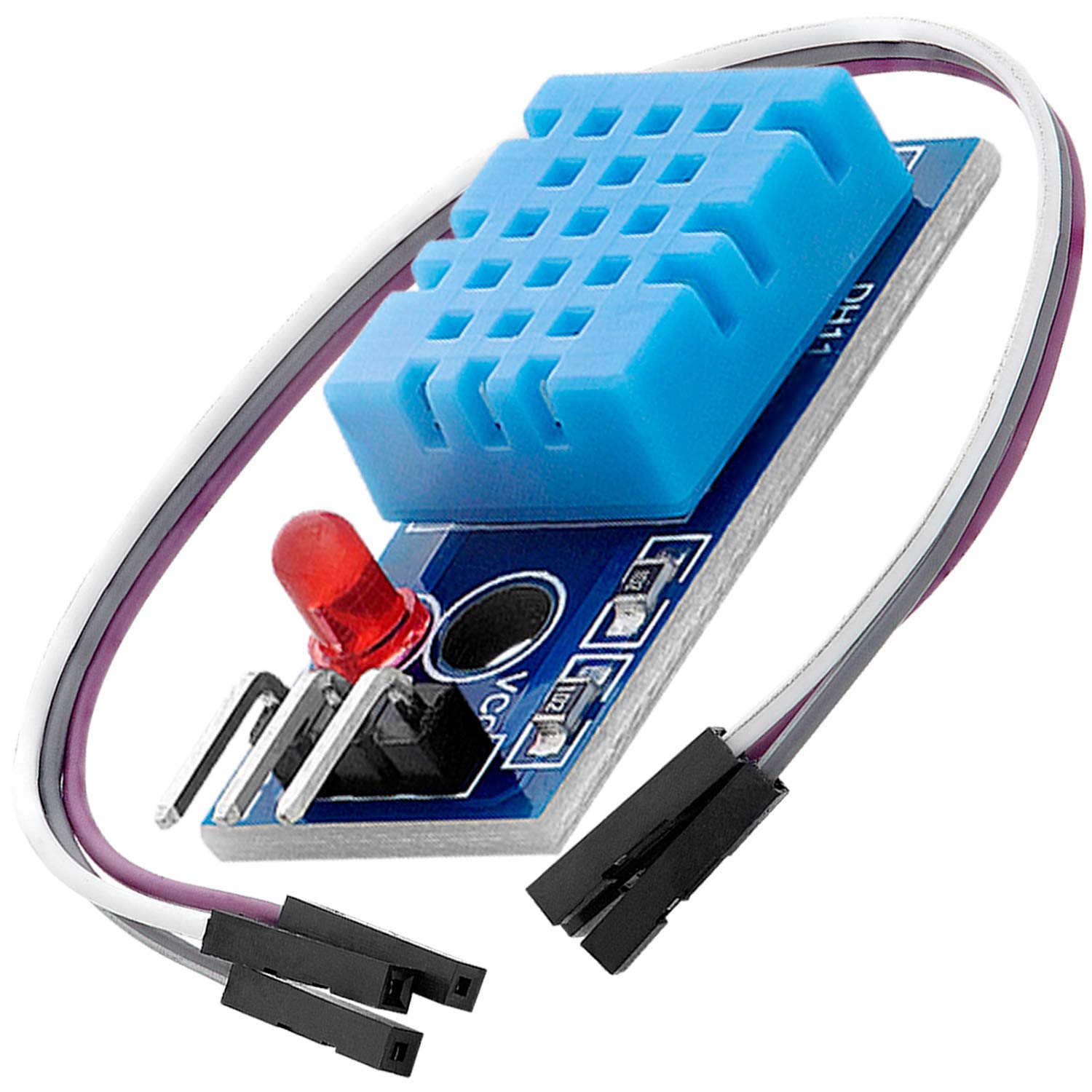

DHT11 Digital Temperature & Humidity Sensor Module with LED Indicator, Compatible with Arduino/STM32, 3-Wire Interface

Single-bus digital temperature and humidity sensor DHT11 module for Arduino electronic blocks
Directly sold by the manufacturer, with stable supply. Welcome to place orders for wholesale!
1. Dimensions: Length 32mm x Width 14mm
2. Sensor model: DHT11 temperature and humidity sensor
3. Operating voltage: DC 5V
IV. Characteristics:
Humidity measurement range: 20 - 90% RH
2. Humidity measurement accuracy: ±5%RH
3. Temperature measurement range: 0 - 50℃
4. Temperature measurement accuracy: ±2℃
5. Working Voltage: DC5V/3.3V
6. Digital signal output
7. Data port with pull-up resistor
8. Equipped with fixed screw holes, facilitating installation

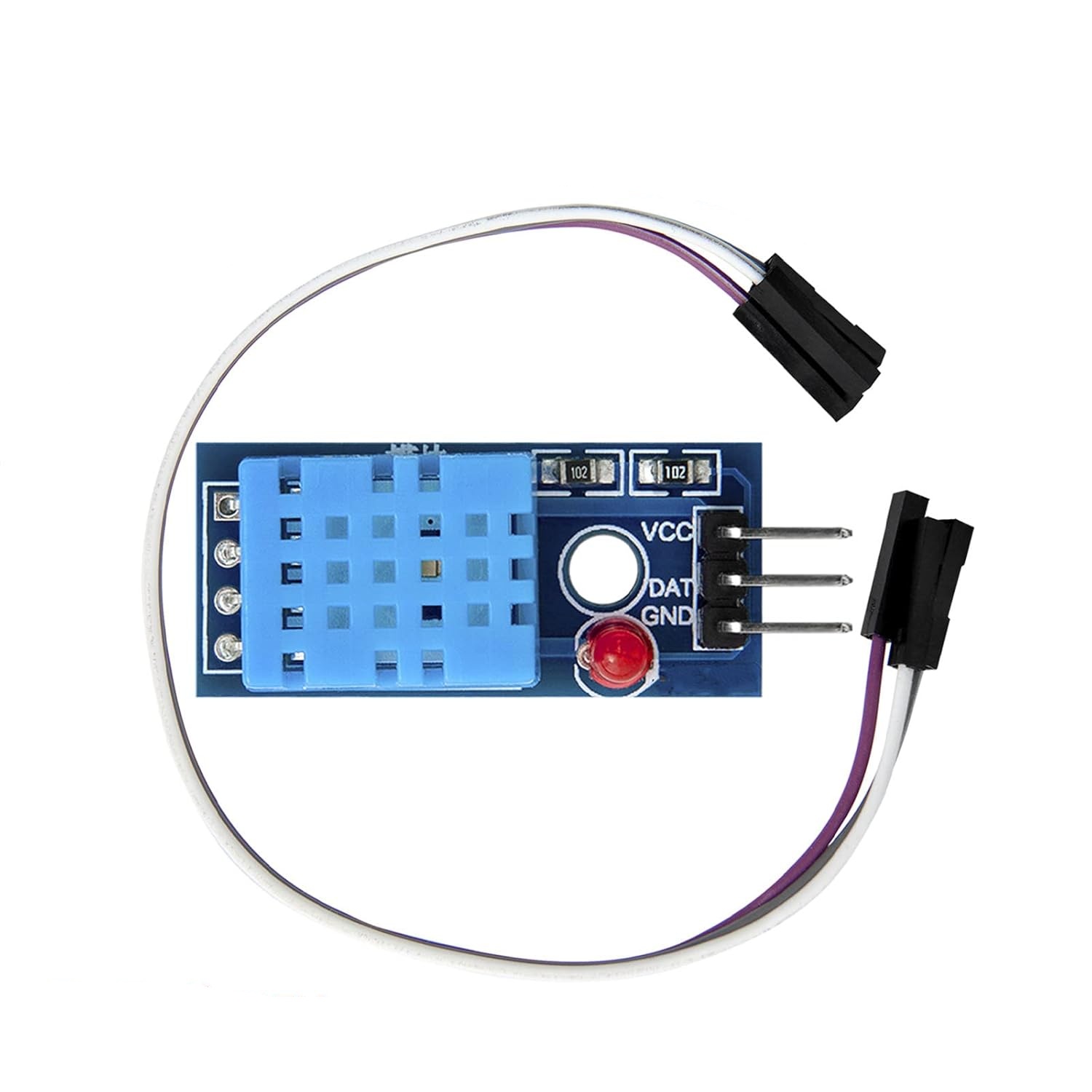

V. Wiring Method:
VCC  → Positive terminal of 3.3V/5V power supply
GND  → Negative terminal of power supply
DATA → Single-chip Microcontroller I/O Port


Caution: Do not connect VCC and GND in reverse. Reversal will cause damage!
