Dual-axis XY Joystick Module for Arduino
Size: 4 X 2.6 X 3.2CM
1.switch
2.potentiometers for 2 axes

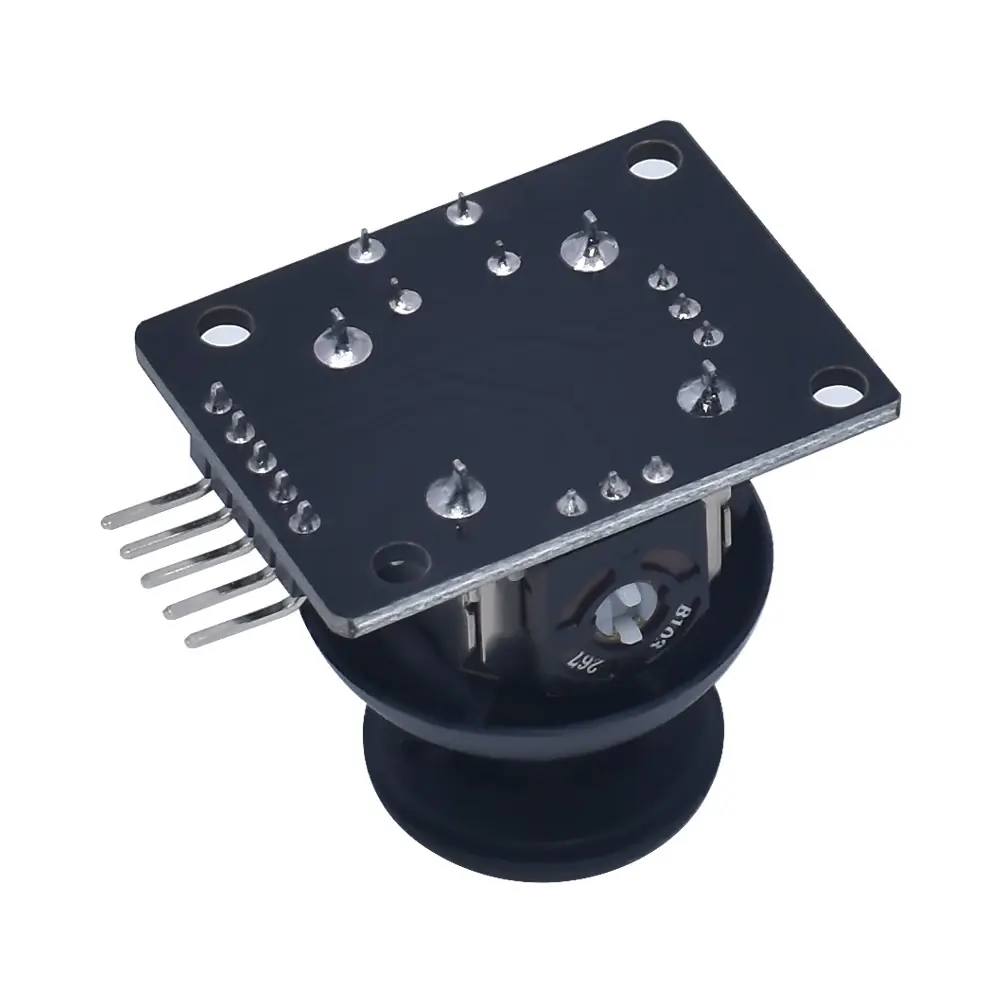

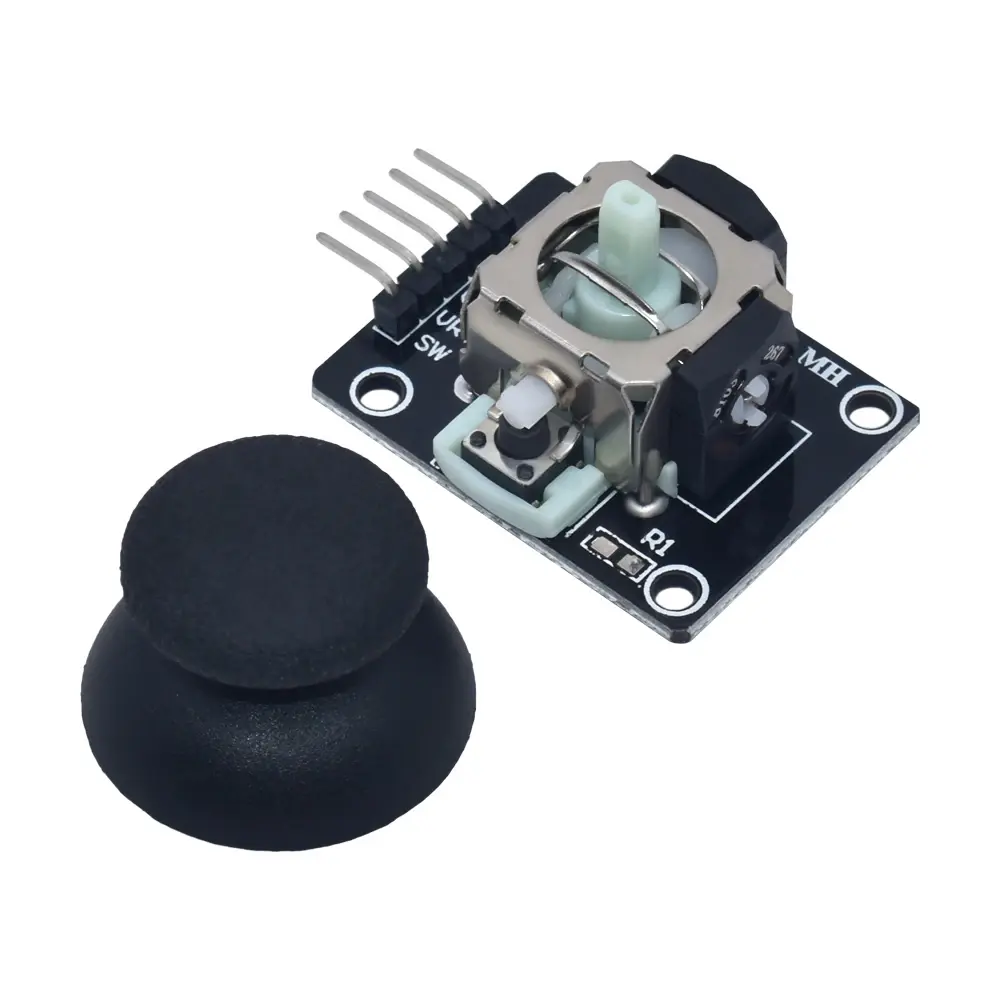

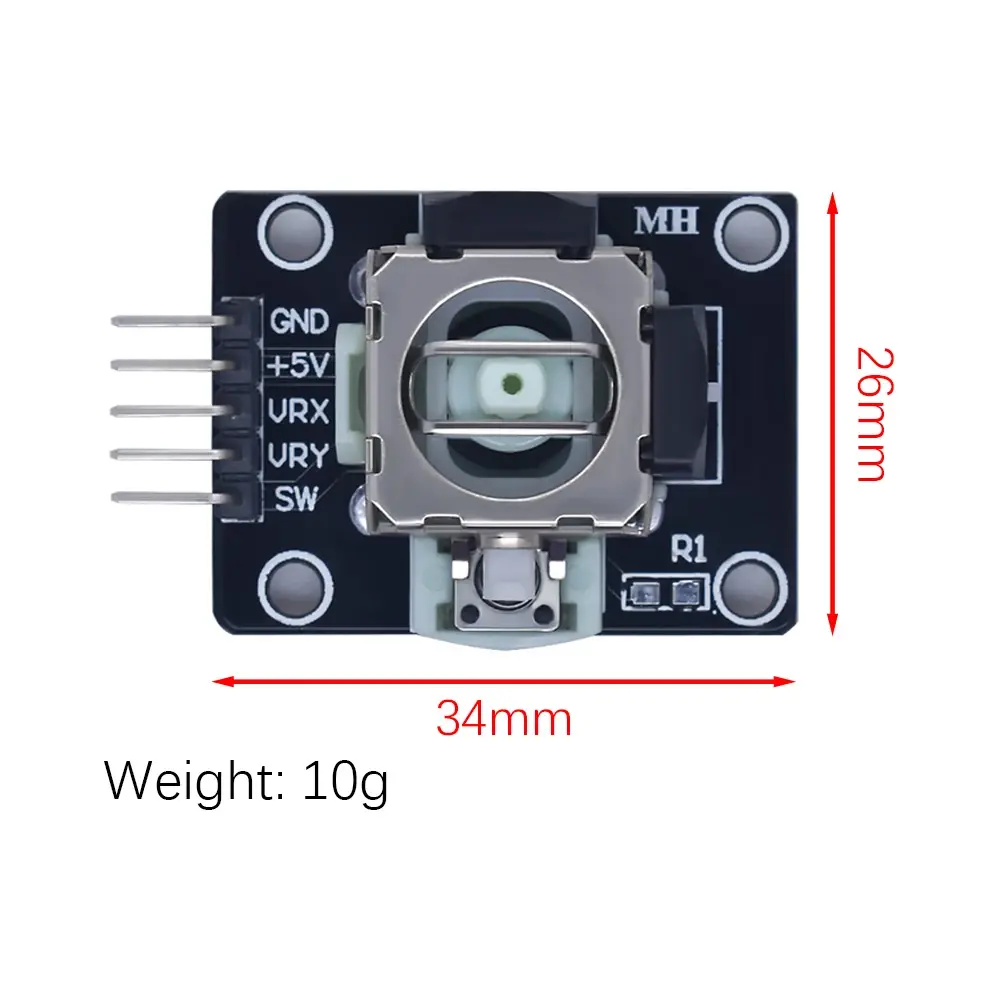

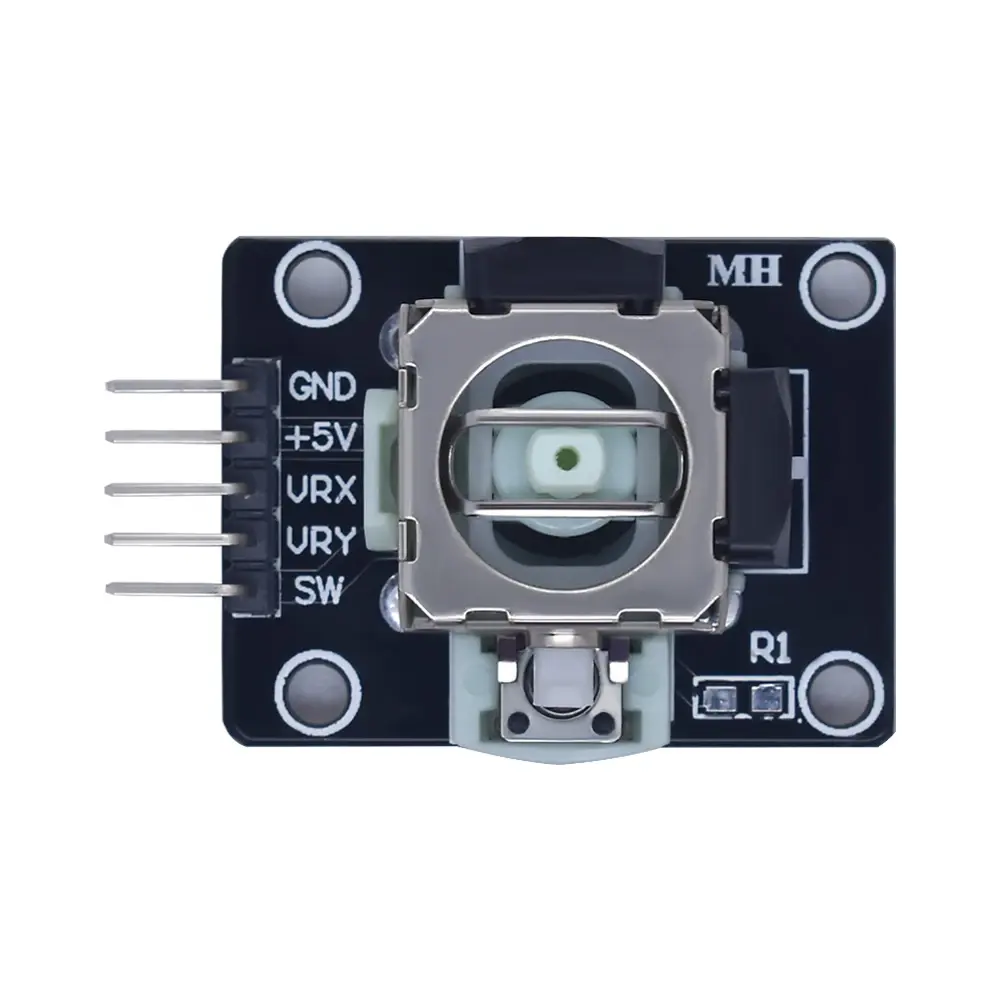

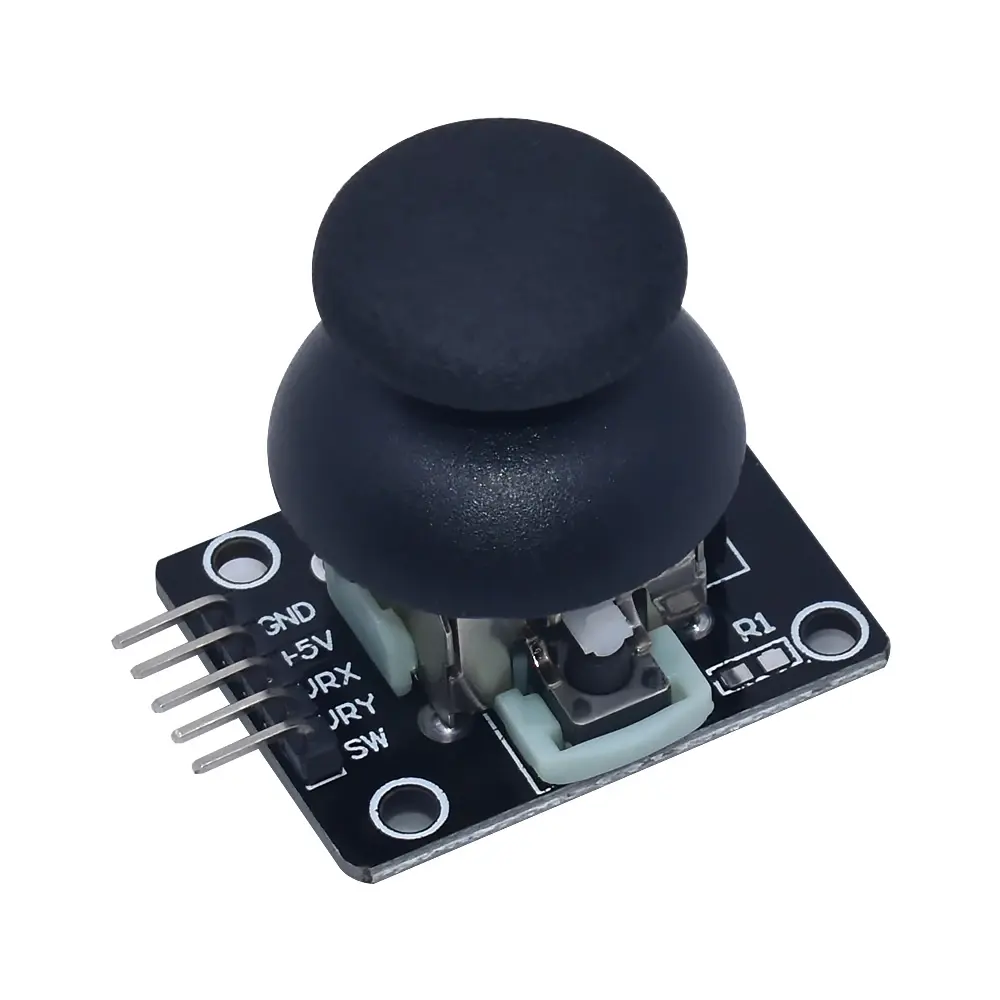

Connector: +5Vcc - GND - VRx - VRy - SW
The dual-axis button joystick sensor module is made using PS2 joystick potentiometers and features (X, Y) 2-axis analog output and (Z) 1-channel button digital output. When paired with the Arduino sensor expansion board, it can be used to create interactive works such as remote controls. Additionally, to make it more convenient for customers to work with Arduino expansion boards and other standard interfaces, the circuits for the X, Y, and Z axes are separately led out. Users can directly plug the 3-pin ARDUINO dedicated cable into the expansion board for use.
Product performance:1. Input voltage range: DC 3.3V to 5V
2. Output signals: The module is specially equipped with two analog output interfaces and one digital output interface. The output values correspond to the (X, Y) dual-axis offset, and their types are analog quantities; the buttons indicate whether the user has pressed on the Z-axis, and their types are digital switch quantities.
3. It can be programmed through the Arduino controller and the sensor expansion board can be plugged in to complete creative remote control interactive works.
4. The cross joystick is a bidirectional 10K resistor. As the joystick direction changes, the resistance value of the tap point changes. This module uses 5V power supply. In the original state, the readout voltage of X and Y is about 2.5V. When pressed in the direction of the arrow, the readout voltage value increases and reaches up to 5V; when pressed in the opposite direction of the arrow, the readout voltage value decreases and is the minimum of 0V.
