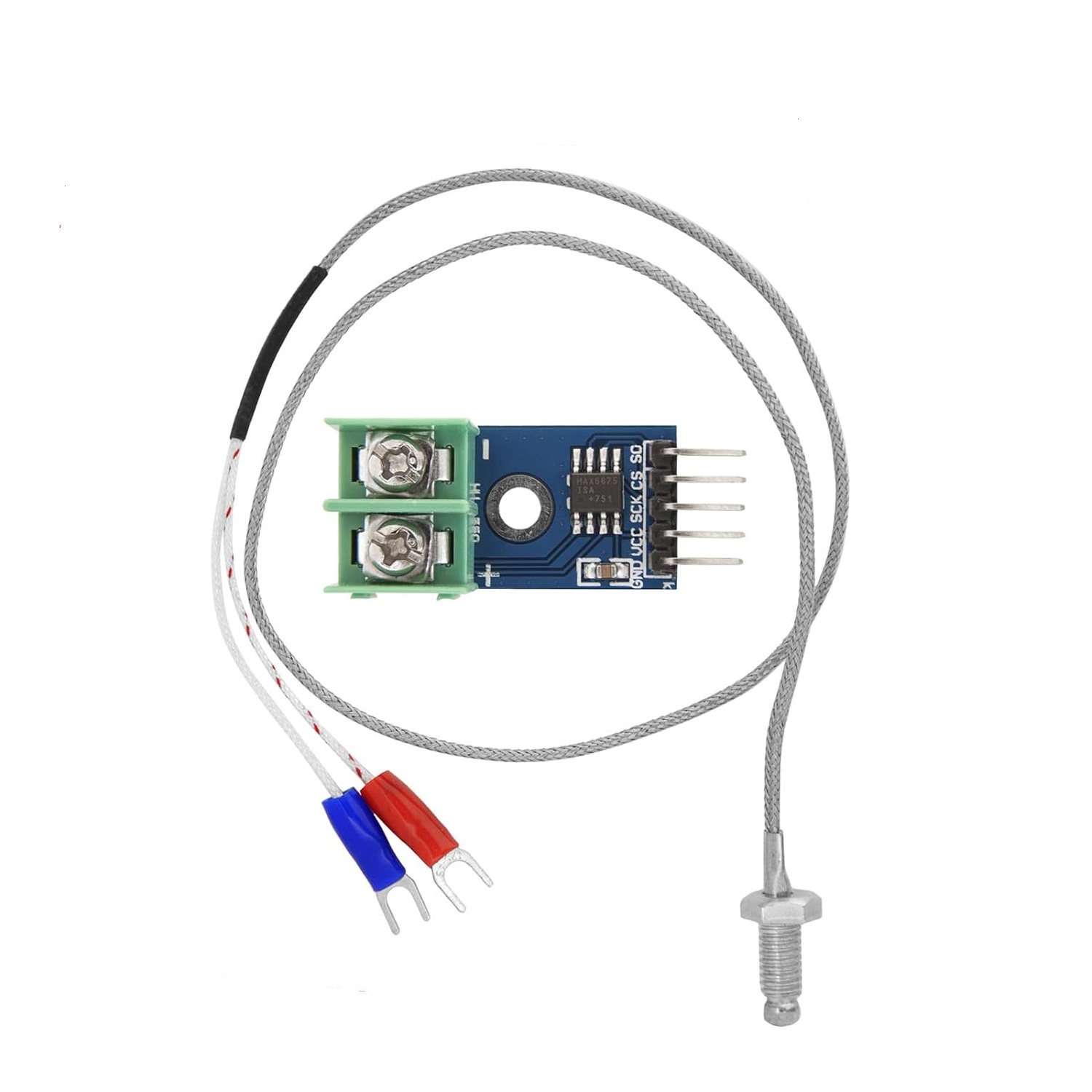

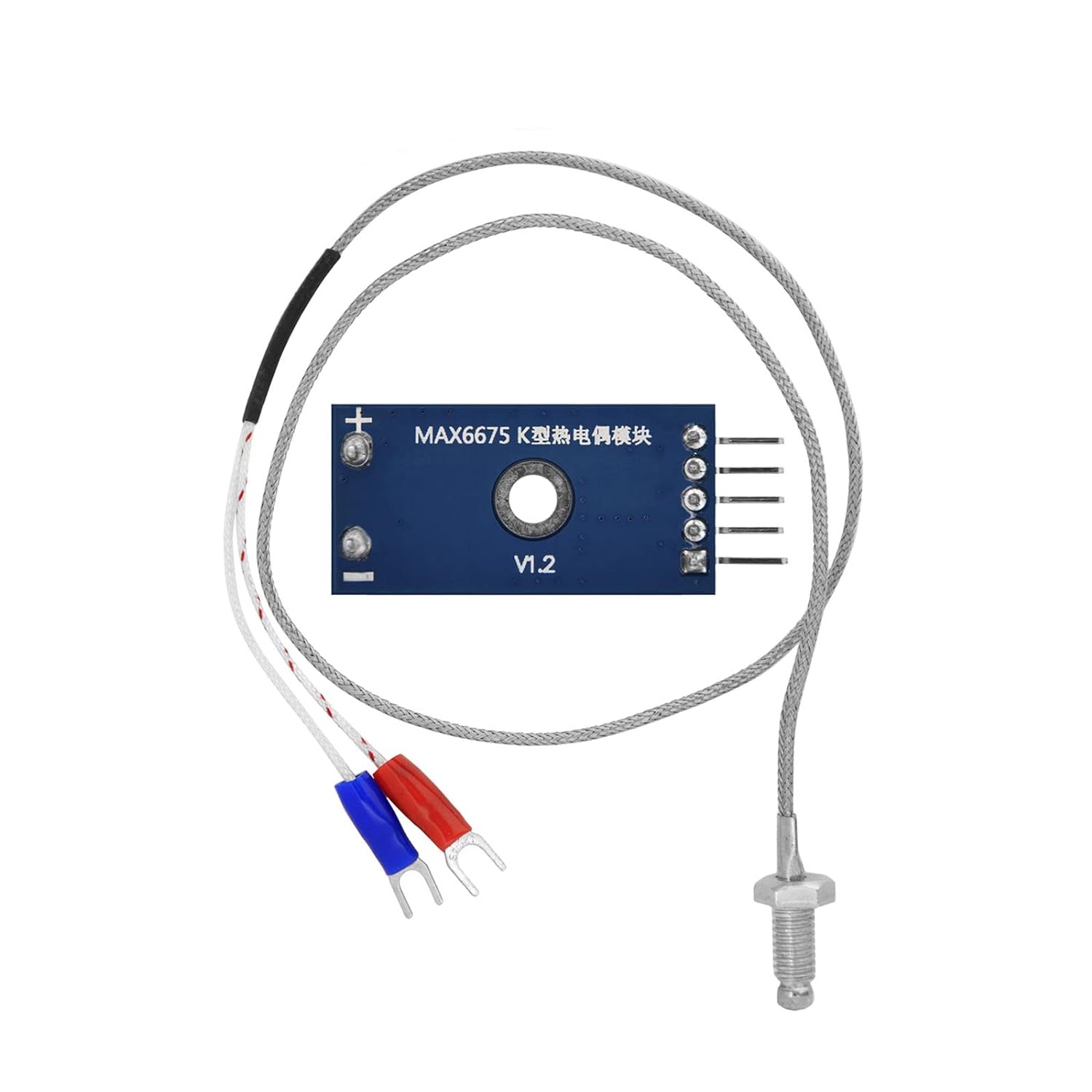

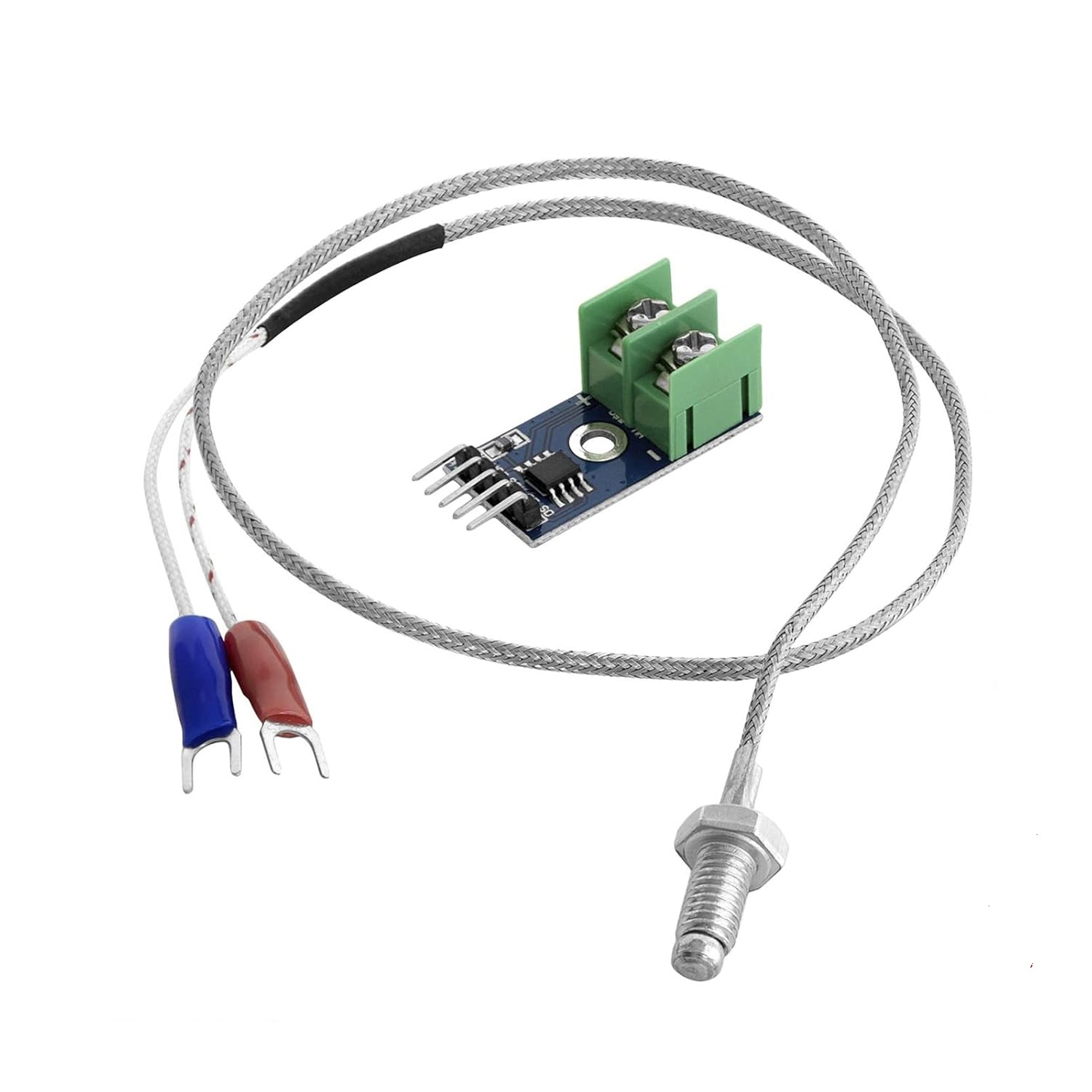

MAX6675 K-Type Thermocouple Temperature Sensor Module Kit | 0-1024°C High Temp Probe | SPI Digital Output | For 3D Printer

The MAX6675 is a 12-bit resolution serial thermocouple-to-digital converter produced by Maxim of the United States, featuring cold junction compensation, linearization, and thermocouple open-circuit detection.
The main features of the MAX6675 are as follows:


Simple SPI serial port temperature value output.
The temperature measurement range is from 0°C to 1024°C, and the temperature resolution of the converter is 0.25°C.
3. On-chip cold junction compensation.
4. High-impedance differential input.
5. Detection of thermocouple disconnection.
The operating voltage range is wide, from 3.0 to 5.5V, and the operating current is 50mA.
The operating temperature range is from -20℃ to 85℃.
9. An ESD signal of 2000V.
Module interface: GND VCC SCK CS SO
Supply voltage: 3 to 5V DC
Module size: 15mm * 25mm
