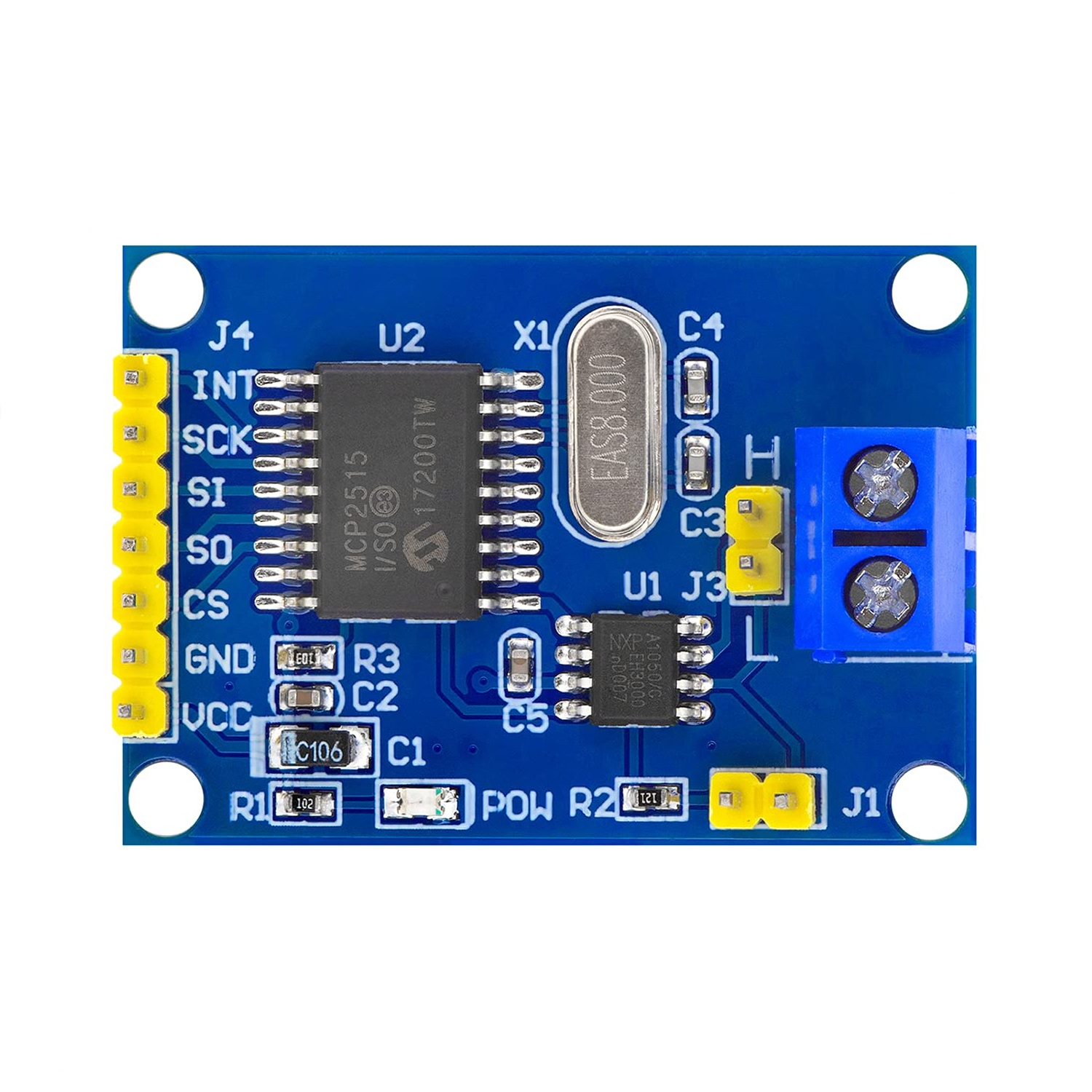

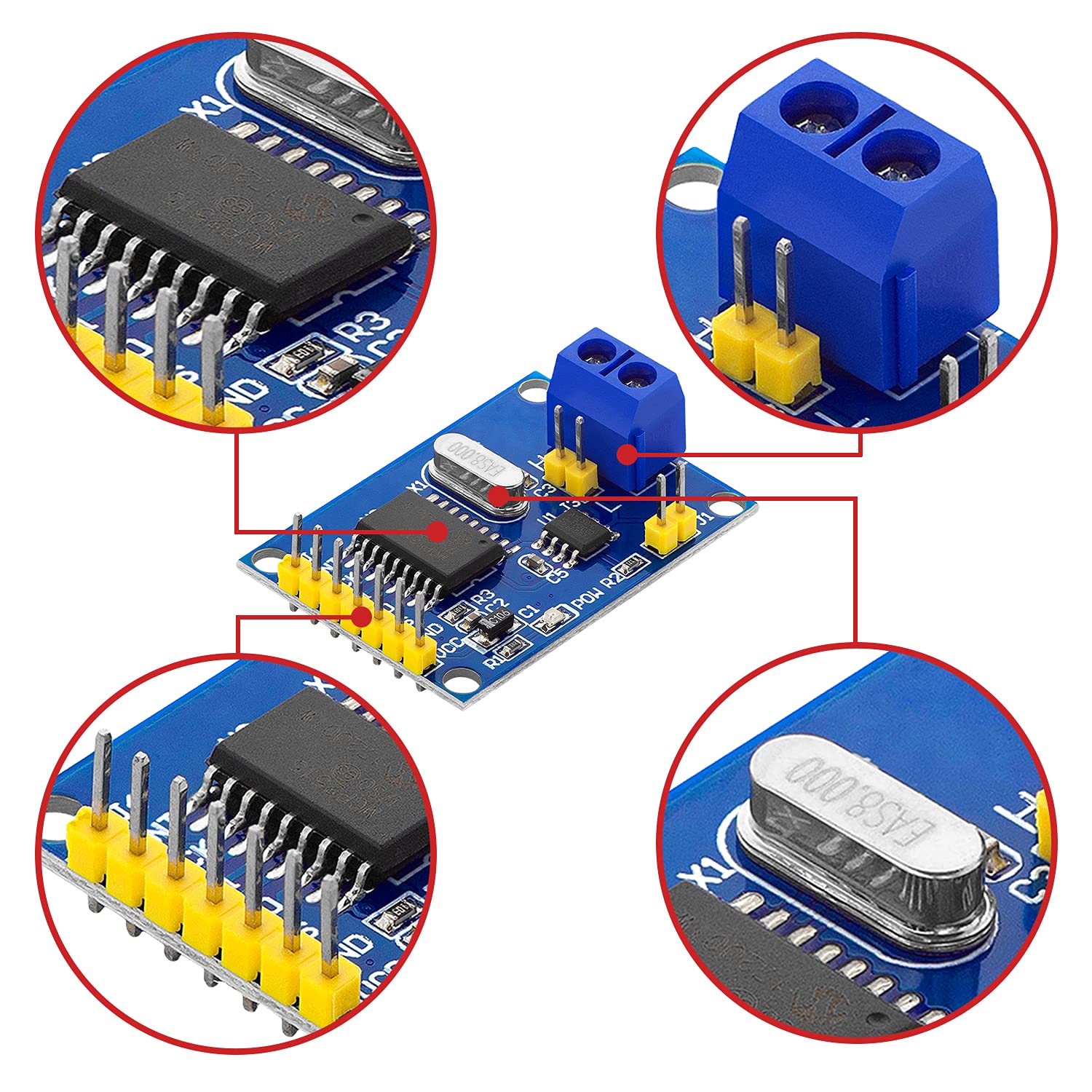

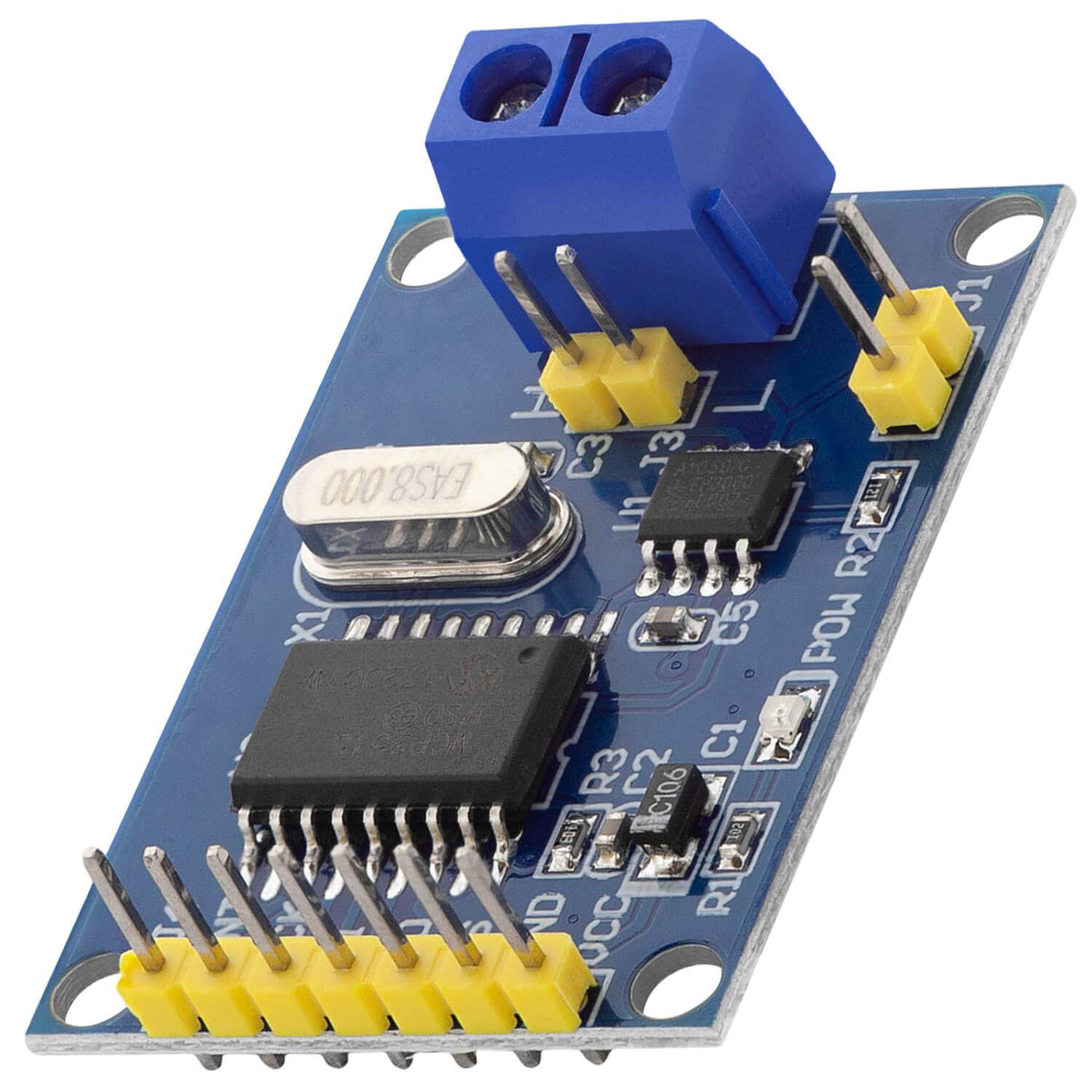

Wholesale MCP2515 CAN bus module, TJA1050 receiver, SPI protocol

Module Characteristics:
Supports CAN V2.0B technical specification, with communication rate of 1Mb/s
2. Data field of 0 to 8 bytes in length
3. Standard frame, extended frame and remote frame
4. Powered by a 5V DC module, controlled by SPI interface protocol
5. 120 ohm terminal resistor. It ensures impedance matching, guarantees driving capability, and prevents signal radiation during long-distance data transmission.
6. Module dimensions: 4.4cm x 2.8cm. Center spacing of the positioning screw holes: 23mm x 38mm
7. Working current: Typical value is 5mA, standby current is 1 microampere. Excluding the power indicator light.
8. Operating temperature: Industrial grade -40°C to 85°C
9. A large amount of materials and examples can be provided, including the schematic diagrams of 89C51 or Arduino, etc.
