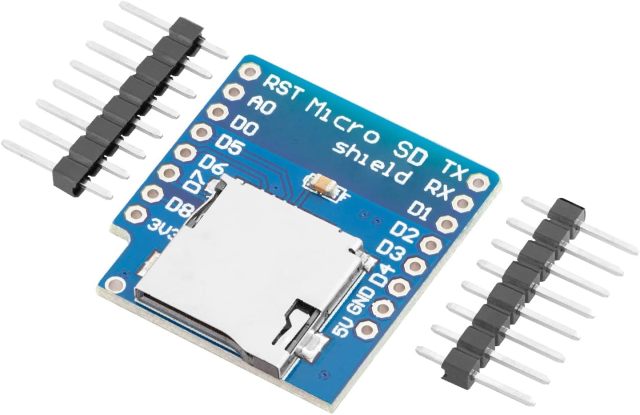

Wholesale MICRO SD TF CARD TF Card Reading and Writing Module FOR D1 Mini WIFI Expansion Board Learning Board

No.MR-337
  • Designed for use with D1 MINI
  • 11x I/O pins
  • 1x ADC pin (0-3.3V input)
  • Supports OTA (Over-the-Air) updates
  • Packaged in anti-static ba

Description

Main Features and Parameters
  • Interface and Communication: Uses the SPI communication interface, typically defaulting to pins D5 (CLK), D6 (MISO), D7 (MOSI), and D8 (CS) for communication.
  • Voltage Compatibility: Features an onboard 3.3V voltage regulator and a level shifter chip (such as the 74LVC125A). This allows it to be compatible with both 3.3V logic and safely communicate with 5V logic controllers, protecting the SD card from high-voltage damage.
  • Stackable Design: The board is designed with pin headers on both sides, allowing it to be directly stacked and plugged into the D1 mini mainboard, saving space and ensuring a stable connection.
  • Power Supply: Can be powered by the D1 mini mainboard (5V or 3.3V), and the onboard circuitry converts it to the stable voltage required by the SD card.
