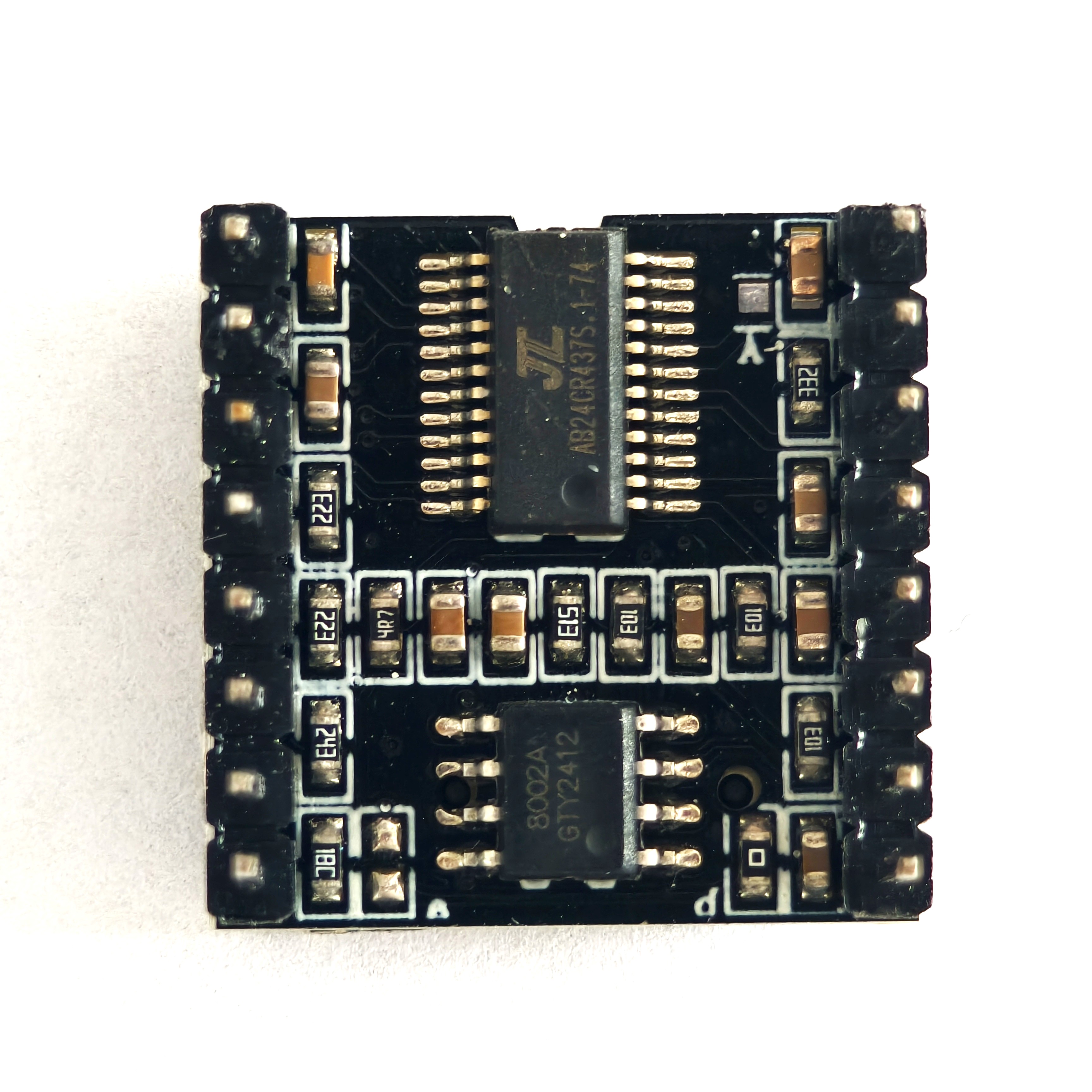

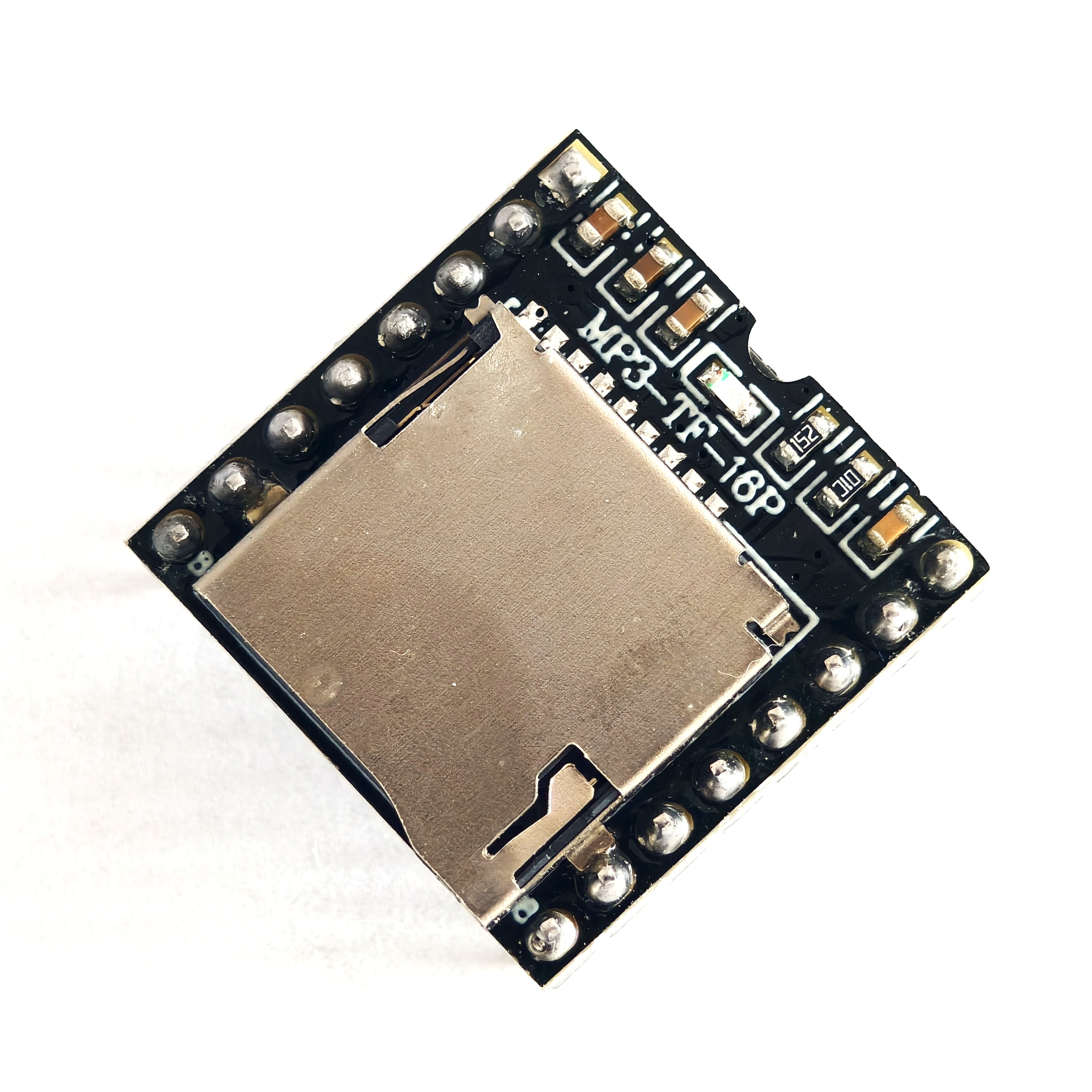

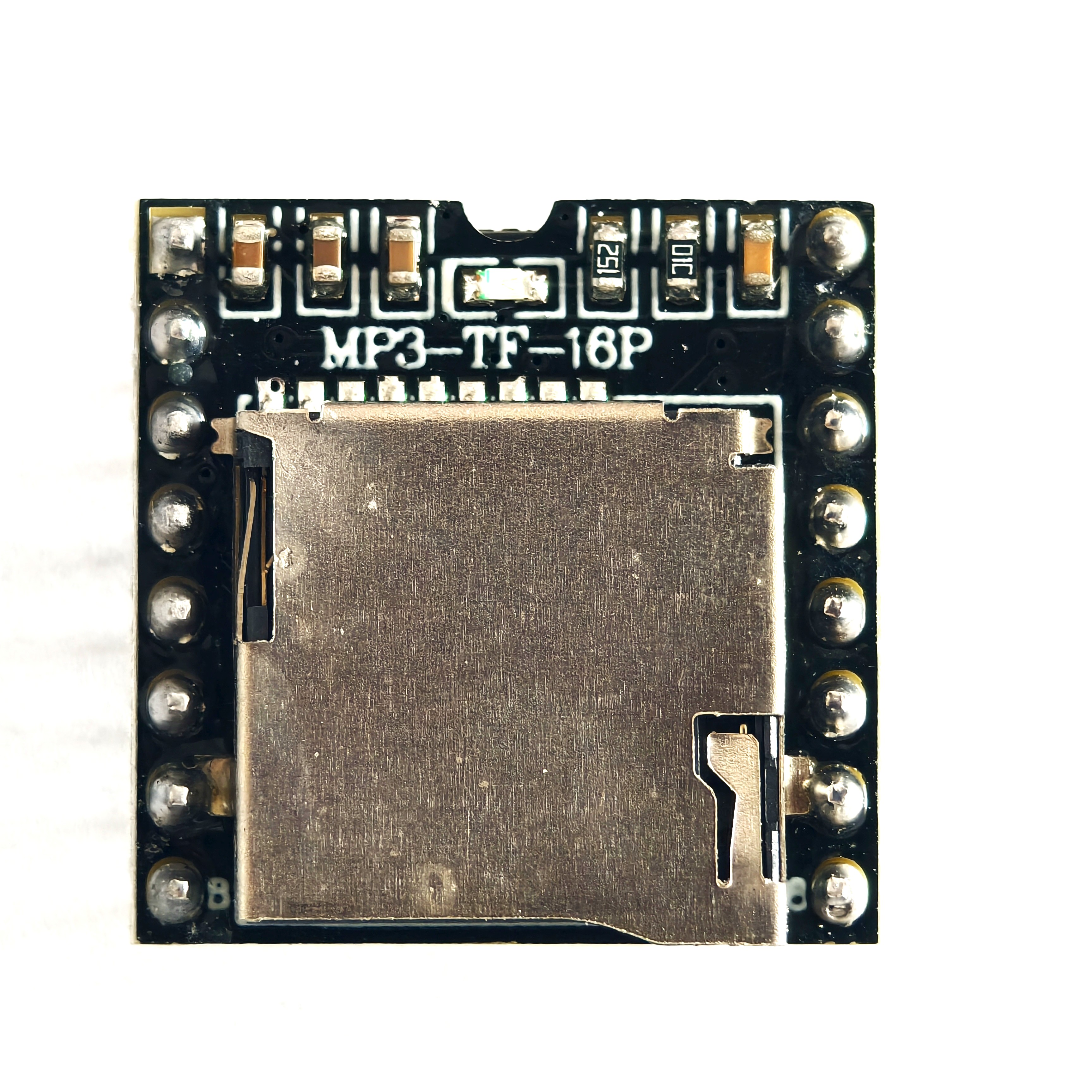

Player Mini is a compact and low-cost MP3 module that can be directly connected to speakers. The module can be used independently by combining with a power supply battery, a speaker, and buttons, or it can be controlled via a serial port and used as a module for Arduino UNO or any single-chip microcontroller with a serial port. The module has a hard decoding function for MP3, WAV, and WMA. Additionally, the software supports TF card drivers and supports FAT16 and FAT32 file systems. By simply using simple serial port instructions, it can complete the functions of playing specified music and how to play music, without the need for complicated low-level operations. It is easy to use, stable and reliable.
Technical Specifications
1. Sampling rate (KHz): 8/11.025/12/16/22.05/24/32/44.1/48
2. 24-bit DAC output, dynamic range support: 90dB, signal-to-noise ratio support: 85dB
3. Fully supports FAT16 and FAT32 file systems. Maximum support for 32G TF card. Supports 32G USB drive and 64M byte NORFLASH
4. Multiple control modes are available. IO control mode, serial port mode, AD button control mode
5. Broadcasting message insertion function. Can pause the playing background music. After the advertisement finishes, it returns to the background music and continues playing
6. Audio data is sorted by folders. Maximum support for 100 folders. Each folder can allocate 255 songs
7. 30-level volume adjustment, 6-level EQ adjustment
Application
1. Voice announcement for in-vehicle navigation
2. Voice prompts for highway transportation inspection and toll stations
3. Voice prompts for security checks at railway stations and bus stations
4. Voice prompts for power, communication, and financial business halls
5. Voice prompts for verification of vehicle entry and exit channels
6. Voice prompts for border inspection channels
7. Multiple voice alarms or equipment operation guidance voice
8. Voice warning for safe driving of electric sightseeing vehicles
9. Automatic alarm for mechanical and electrical equipment failures
10. Fire alarm voice prompt
11. Automatic broadcasting equipment, timed announcement
