Nano Expansion Board NANO IO Shield V1.0 Simple Expansion Board

Core Features & Highlights

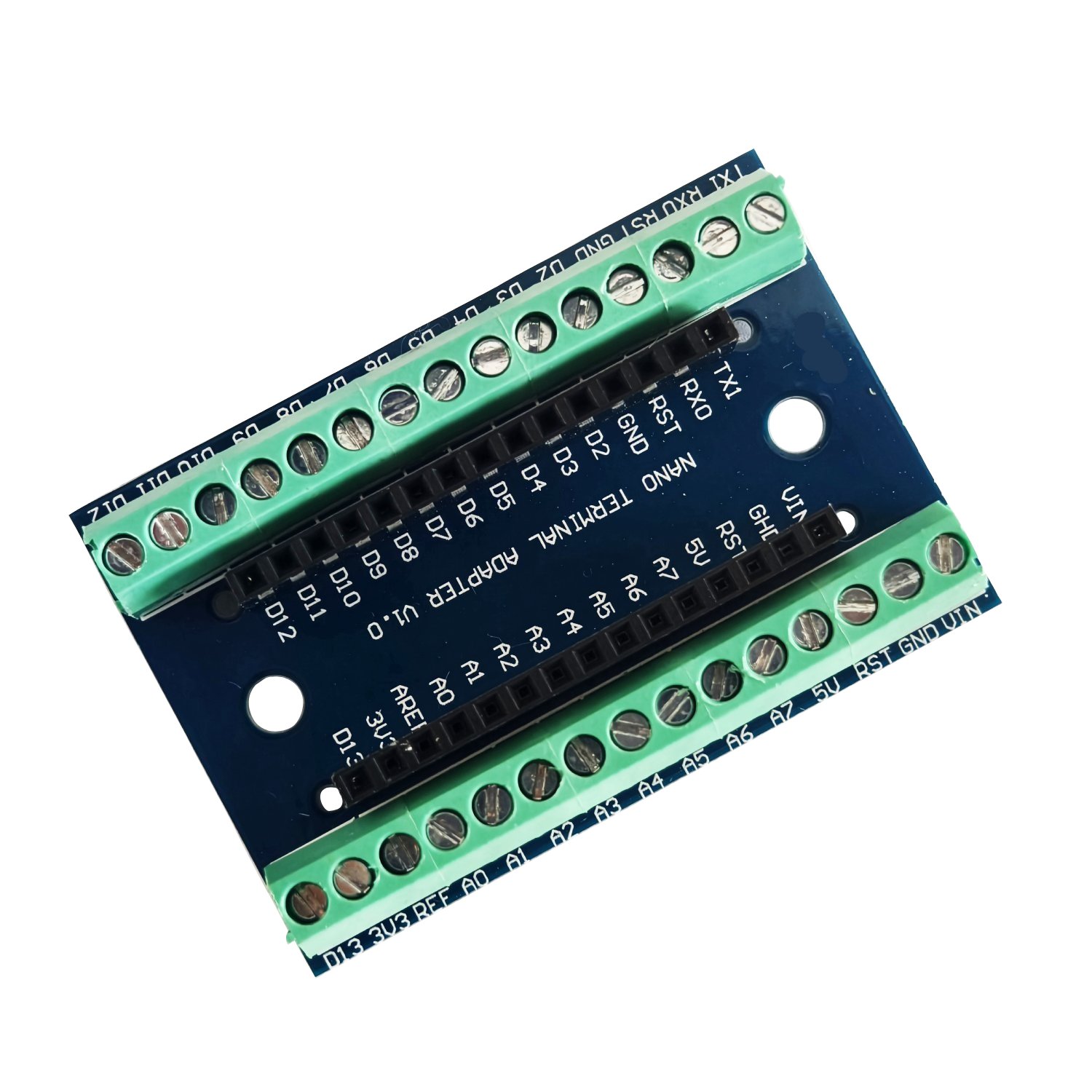

• Solder-Free Quick Connection: Equipped with two rows of high-quality green screw terminal blocks, this shield allows you to securely fasten jumper wires or cables directly with a screwdriver. There is no need for breadboards or soldering, ensuring stable and vibration-resistant connections.
• All GPIO Pins Exposed: The board breaks out every single pin from the Nano controller, including Digital (D0-D13), Analog (A0-A7), Power (5V, 3.3V, GND), and Communication (TX/RX) interfaces, ensuring full functionality.
• Clear Silkscreen Labels: The PCB features clear and easy-to-read pin definition labels, helping users quickly identify each port's function to minimize wiring errors and improve development efficiency.
• Secure Stacking Design: The precision female headers ensure a tight and stable fit with the Nano board, making it suitable for embedded installations or as a standalone control core.

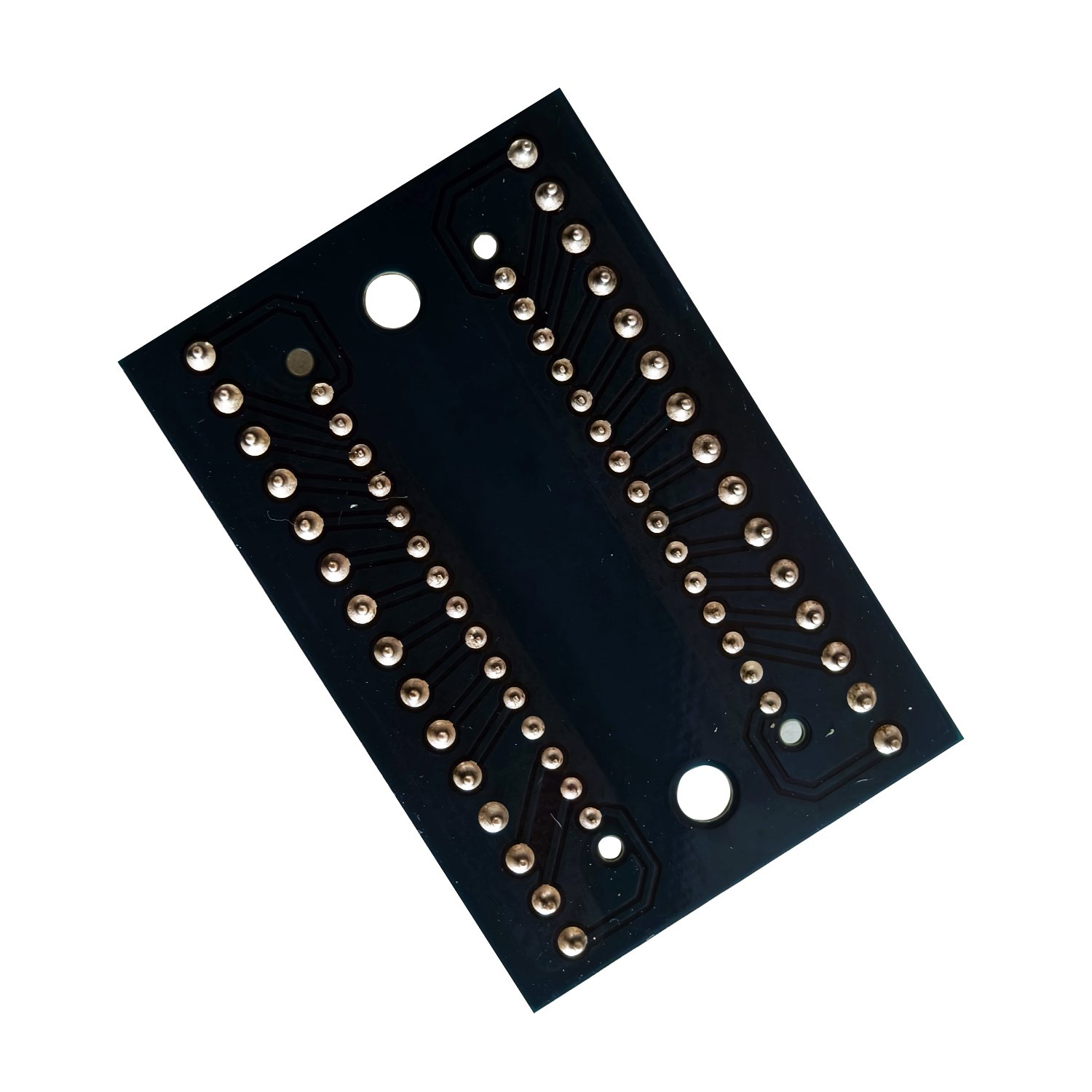

• Physical Protection: Beyond serving as an interface adapter, it provides physical protection for the bottom of the Nano board, preventing short circuits caused by contact with metal surfaces.

•
