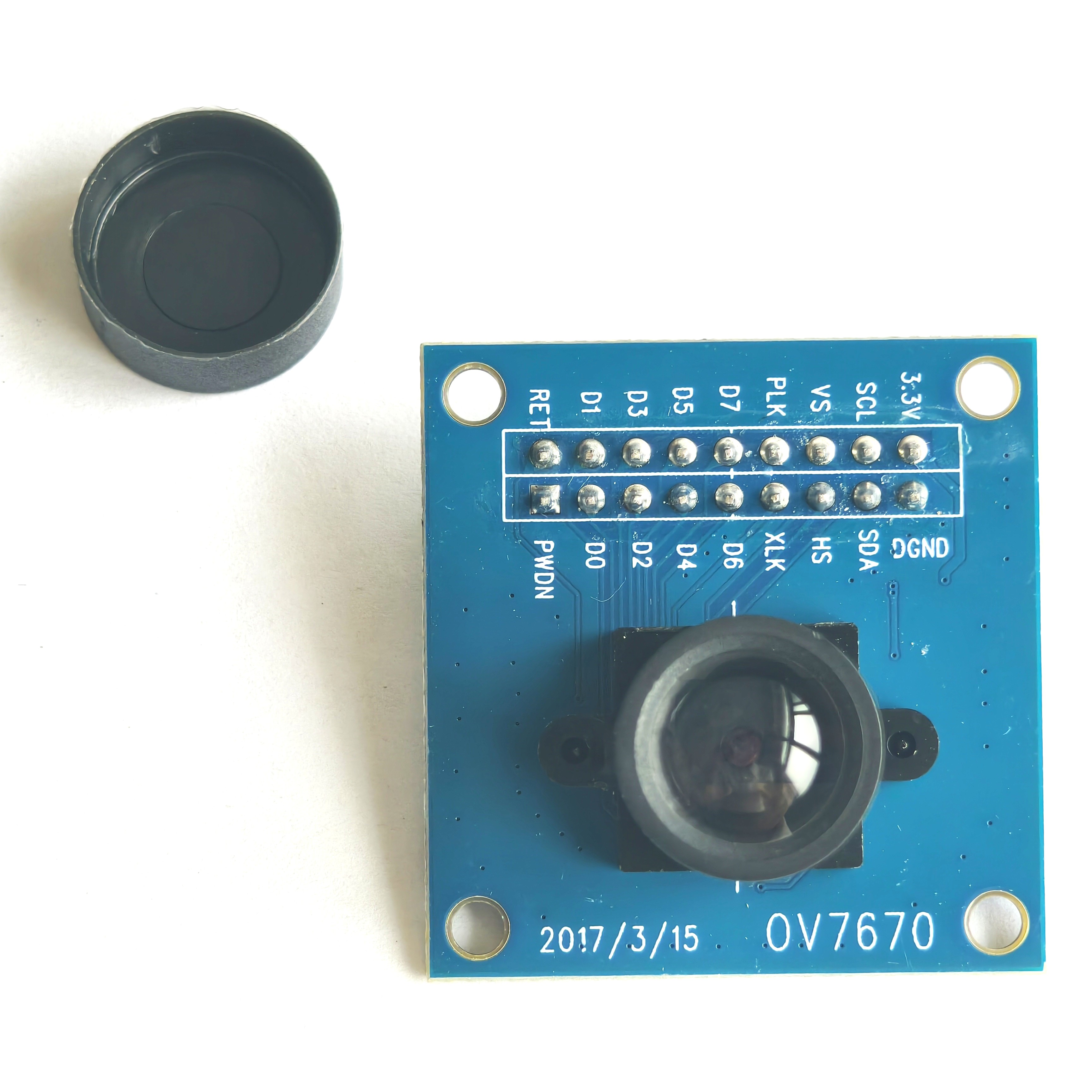

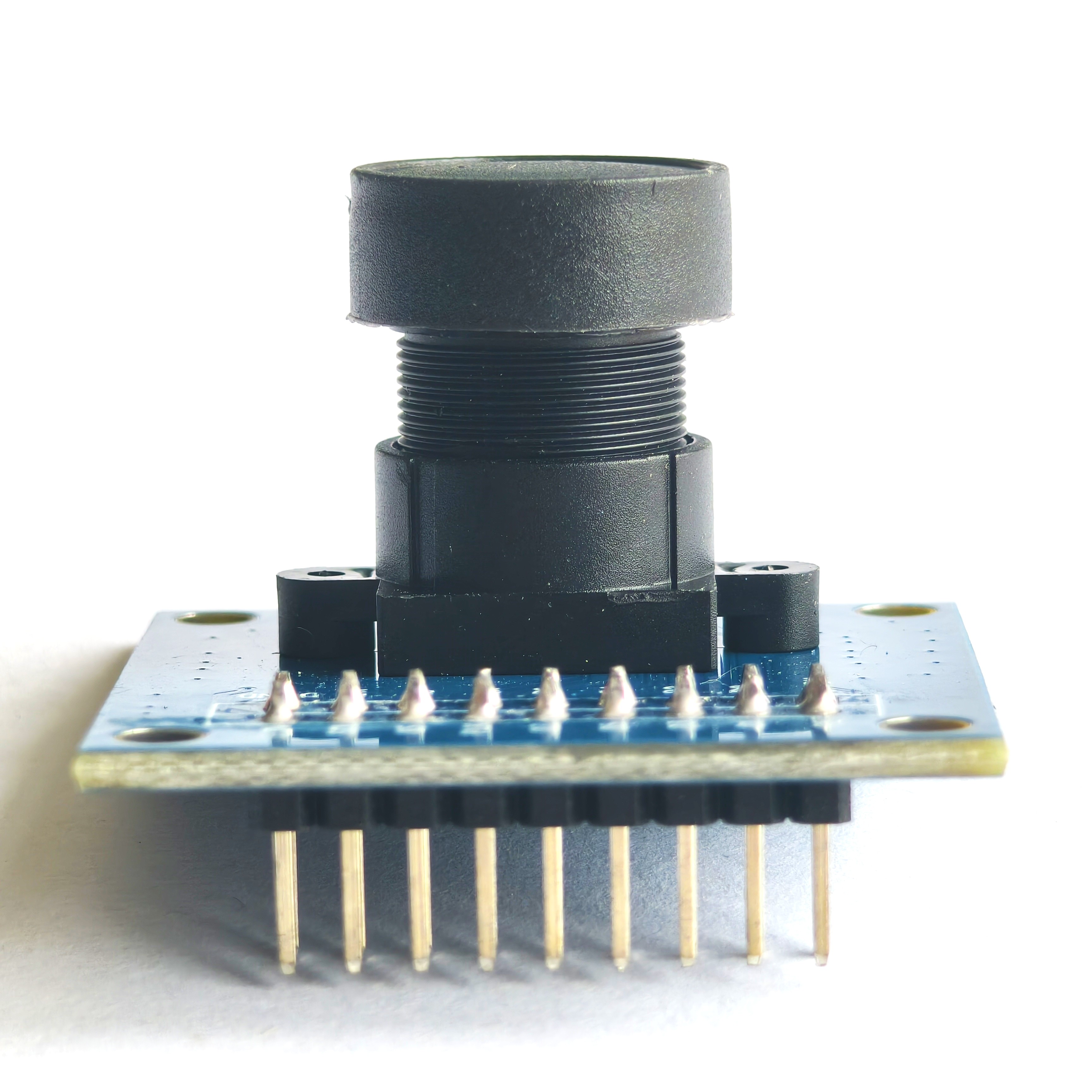

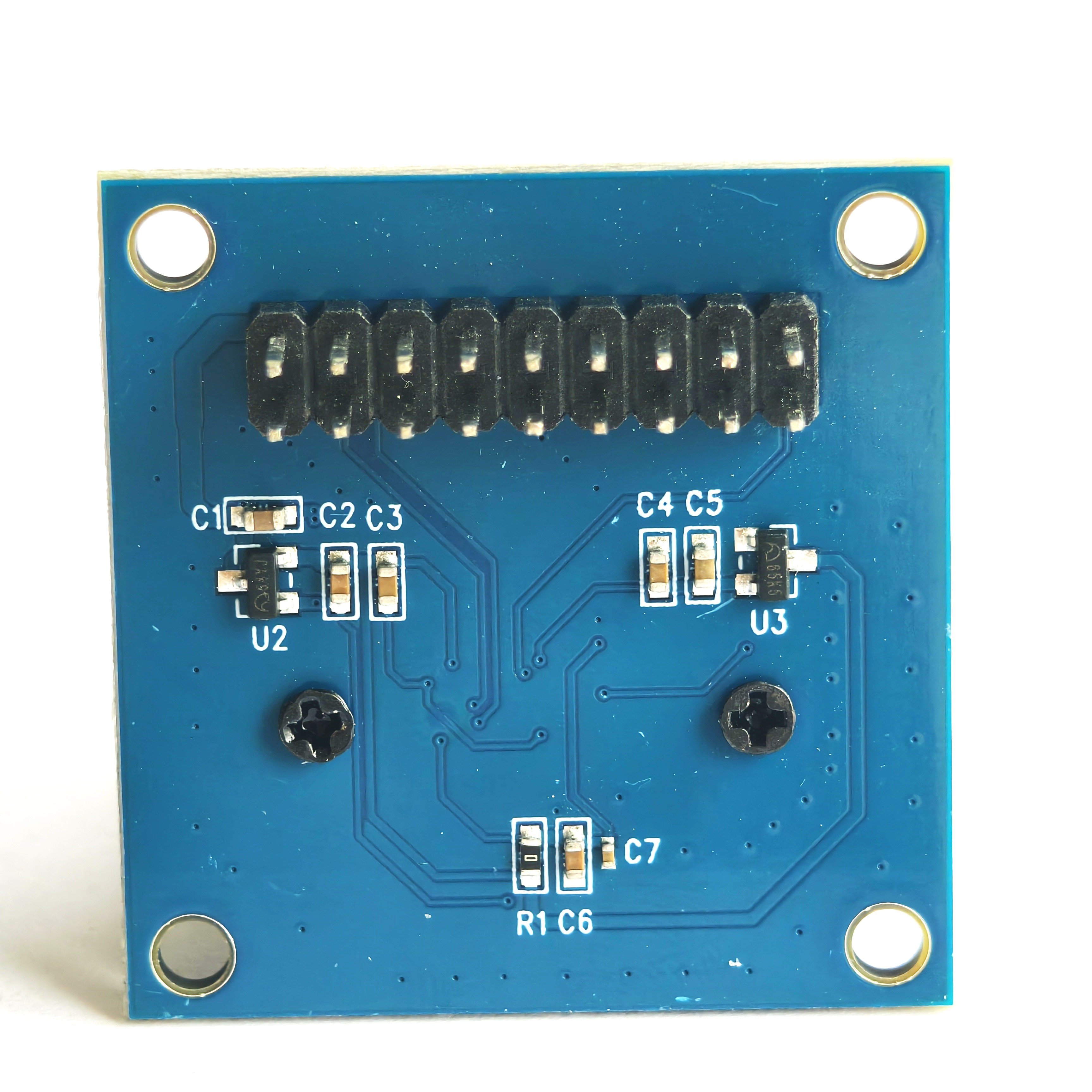

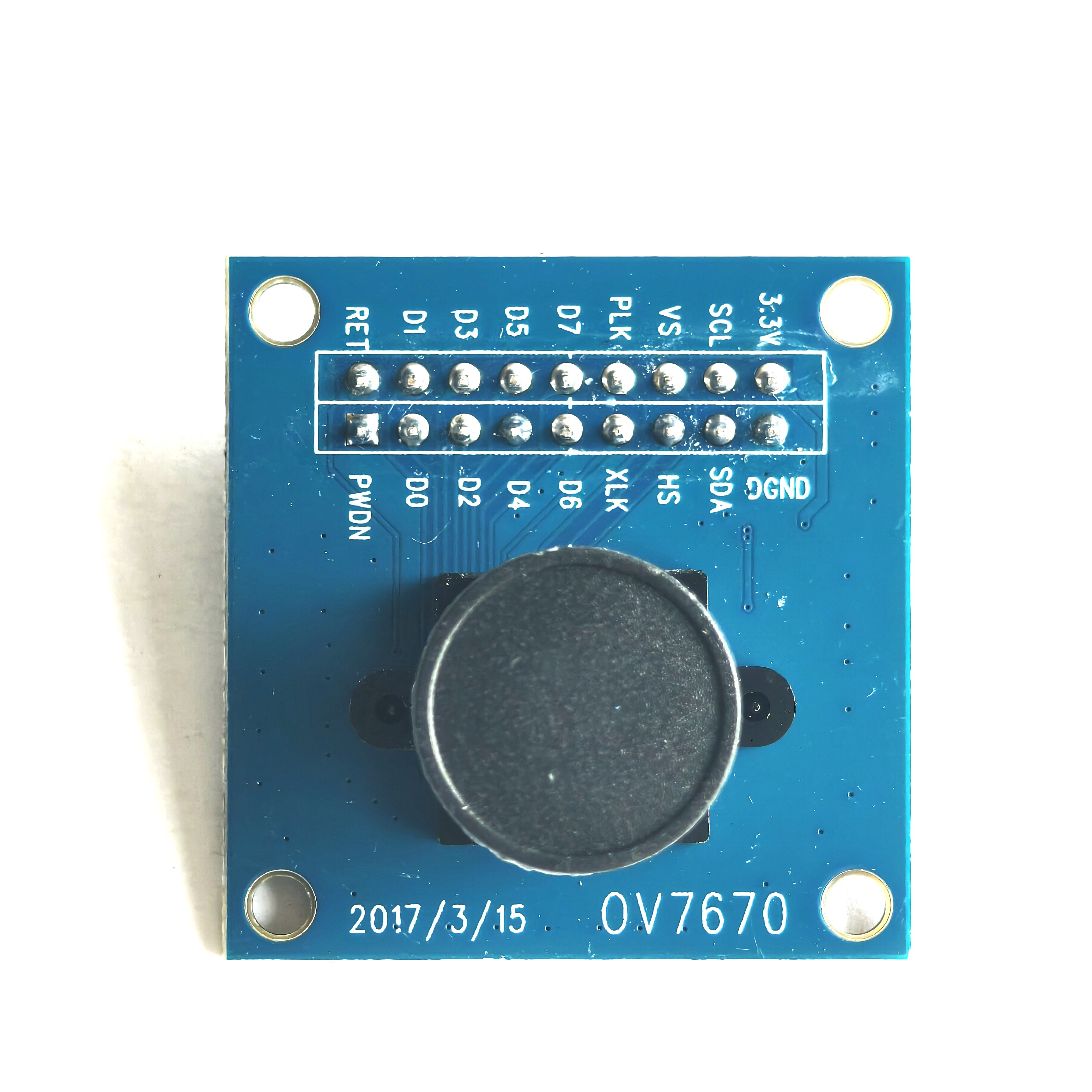

The OV7670 image sensor is small in size and operates at a low voltage, providing all the functions of a single-chip VGA camera and image processor. Controlled via the SCCB bus, it can output various resolution 8-bit image data in full frame, sub-sampling, and windowing modes. The product can achieve a maximum VGA image rate of 30 frames per second. Users have full control over image quality, data format, and transmission method. All image processing functions, including gamma correction, white balance, saturation, and chroma, can be programmed through the SCCB interface. OmmiVision's image sensor uses unique sensor technology to improve image quality by reducing or eliminating optical or electronic defects such as fixed pattern noise, blooming, and smearing, resulting in clear and stable color images.
● High sensitivity suitable for low-light applications
● Low voltage suitable for embedded applications
● Standard SCCB interface, compatible with I2C interface
● RawRGB, RGB (GRB4:2:2, RGB565/555/444), YUV (4:2:2), and YCbCr (4:2:2) output formats
● Supports VGA, CIF, and various sizes from CIF to 40x30
● VarioPixel sub-sampling method
● Automatic image control functions include: automatic exposure control, automatic gain control, automatic white balance, automatic elimination of light streaks, and automatic black level calibration. Image quality control includes color saturation, hue, gamma, sharpness, and anti-bloom
● ISP has noise reduction and bad pixel compensation functions
● Supports image scaling
● Lens vignetting compensation
● 50/60Hz automatic detection
● Automatic saturation adjustment (UV adjustment)
● Automatic edge enhancement adjustment
● Automatic noise reduction adjustment
Key Parameters
Photo array 640X480
IO voltage 2.5V to 3.0V (internal LDO supplies 1.8V to the core)
Power consumption 60mW/15fps VGA YUV
Sleep mode <20μA
Operating temperature -30℃ to 70℃
Stable operating temperature 0℃ to 50℃
Output format (8-bit) YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data
Optical size: 1/6"
Field of view: 25°
Maximum frame rate: 30fps VGA
Sensitivity: 1.3V/(Lux-sec)
Signal-to-noise ratio: 46 dB
Dynamic range: 52 dB
Scanning mode: Progressive
Electronic exposure: 1 line to 510 lines
Pixel size: 3.6μm x 3.6μm
Dark current is 12 mV/s at 60℃
