MG995 Metal Copper Gear Servo Motor / 55g Servo Controller / Remote Control Vehicle / Boat / 13-kilogram High-Torque Servo Motor
01: Structural material: Simulated metal copper teeth
02: Connection line length: 30 cm, signal line (yellow wire), red wire (power line), brown wire (ground wire)
03: Dimensions: 40.7 * 19.7 * 42.9 mm
04: Weight: 55 grams
05: Reaction speed: No-load speed 0.17 seconds/60 degrees (4.8V); 0.13 seconds/60 degrees (6.0V)
06: Locked torque
07: Working dead zone: 4 microseconds
08: Plug specification: JR FUTABA universal
09: Working voltage: 3.0V - 7.2V
10: Working torque: 13KG/cm
11: Operating temperature: -30 ~ +60 degrees Celsius
12: Suitable models: Two-legged robots / mechanical hands / remote control vehicles, suitable for 50-level to 90-level methanol fixed-wing aircraft and
26cc - 50cc gasoline fixed-wing aircraft and other models

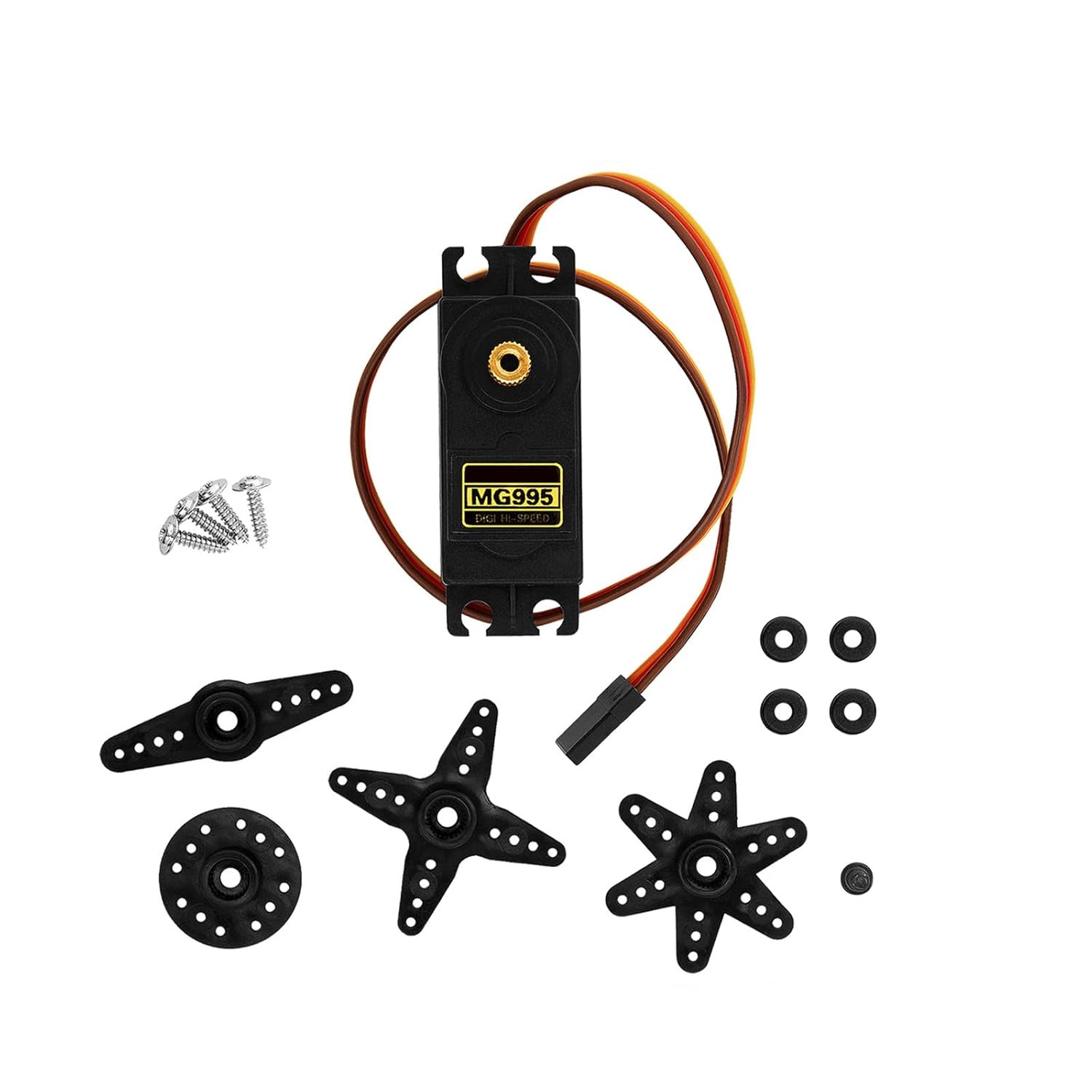

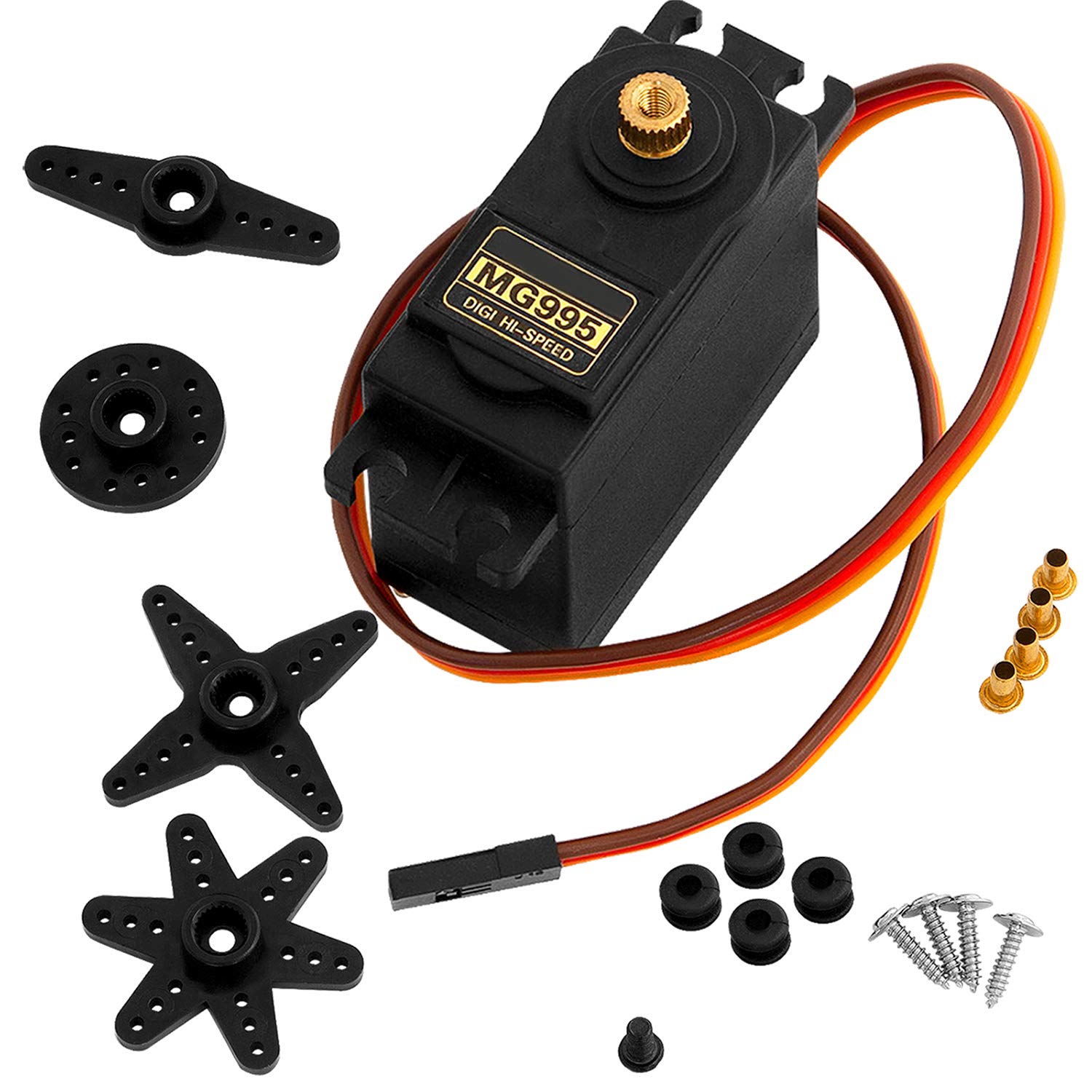

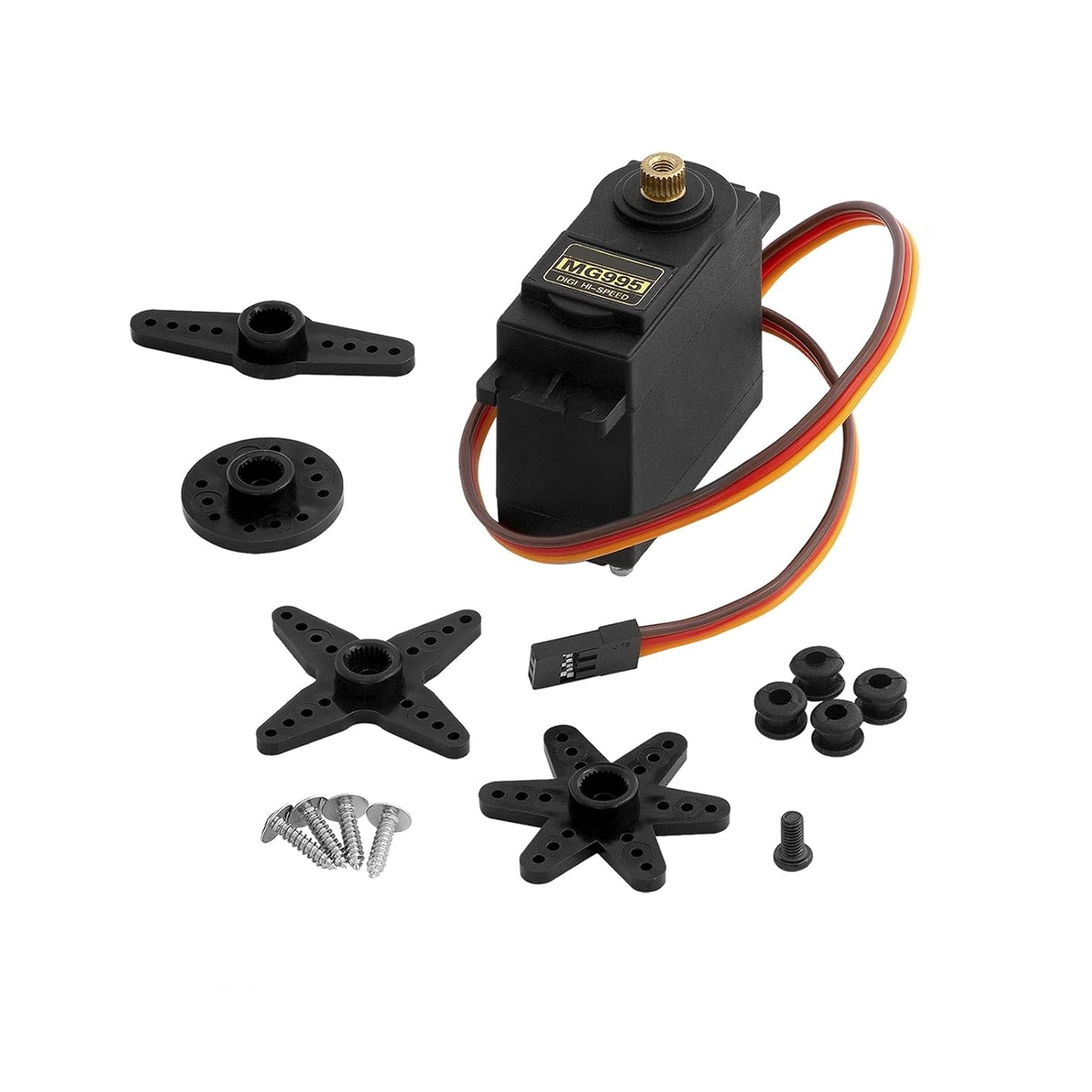

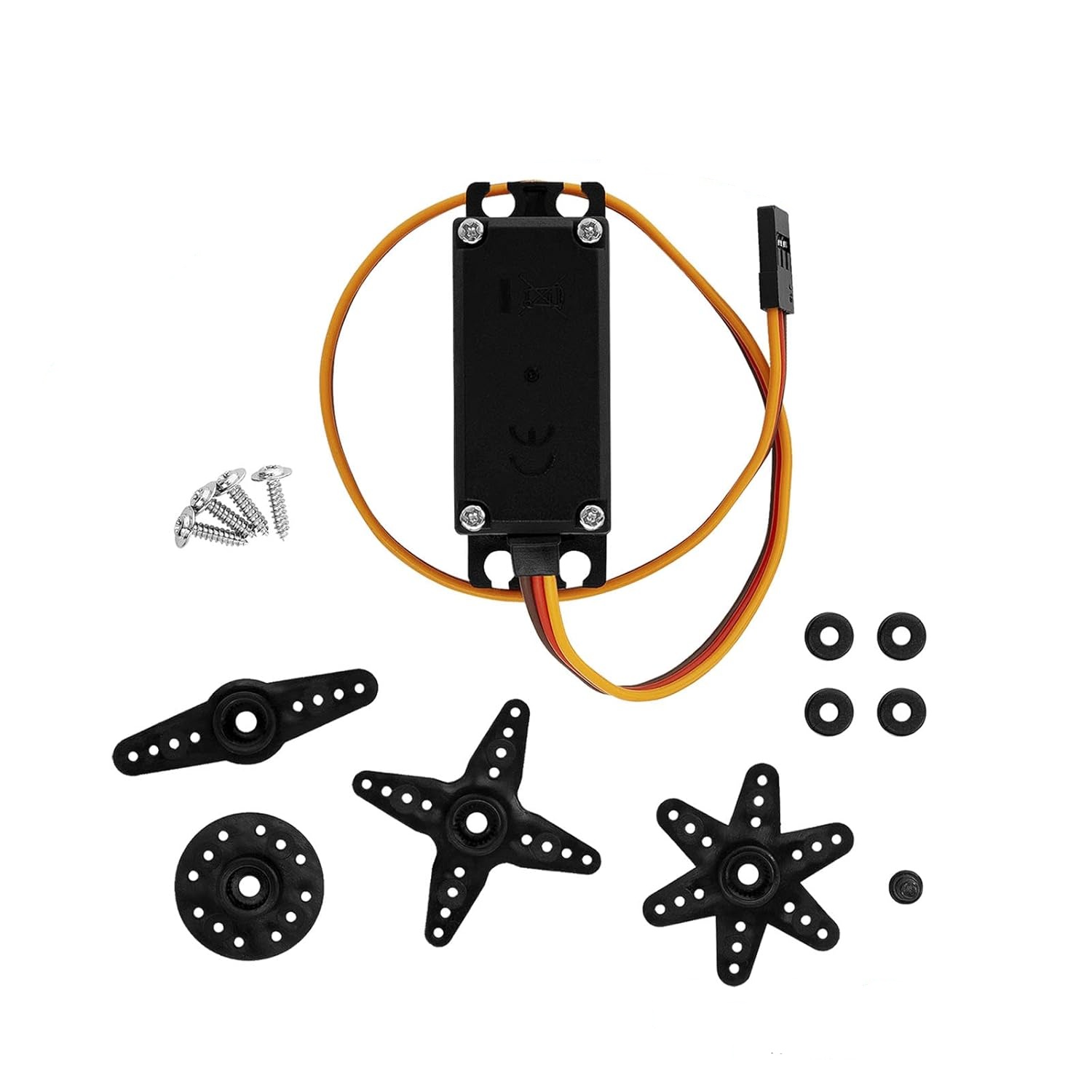

13: Accessories: Steering wheel, fixing screws, vibration damping rubber sleeve and aluminum sleeve.
The control of the servo generally requires a timing pulse of about 20ms. The high-level part of this pulse is usually an angle control pulse within the range of 0.5ms to 2.5ms, with a total interval of 2ms. Taking a 180-degree angle servo as an example, the corresponding control relationship is as follows:
0.5 ms ------------ 0 degrees;
1.0 ms ------------ 45 degrees;
1.5 ms ------------ 90 degrees;
2.0 ms ----------- 135 degrees;
2.5 milliseconds ---------- 180 degrees;
360-degree modified steering gear: Essentially equivalent to an infinitely variable speed reduction motor, capable of controlling both speed and direction. It lacks the function of 0-360-degree angle control. The control method is the same as that of ordinary steering gears. It is an appropriate power source for Wally modifications.
(When the high level is between 1 millisecond and 1.5 millisecond, the servo rotates clockwise (the rotation speed is the fastest at 1 millisecond, and it becomes slower as it approaches 1.5 millisecond, and it stops rotating at 1.5 millisecond). When the high level is between 1.5 millisecond and 2 millisecond, the servo rotates counterclockwise (the servo stops rotating at 1.5 millisecond, and the rotation speed becomes faster as it approaches 2 millisecond, and it rotates at the fastest speed at 2 millisecond). )
