Wholesale TTP223B Touch Sensor Module - 3V-5V Capacitive Touch Switch Board with Momentary/Toggle Mode - Bulk Electronic Components

The features of the module are as follows:
Pulse-type: Initial state is low level, touch is high level, no touch is low level (similar to the function of a soft-touch button)
Low power consumption

The power supply can be 2 to 5.5 volts DC.

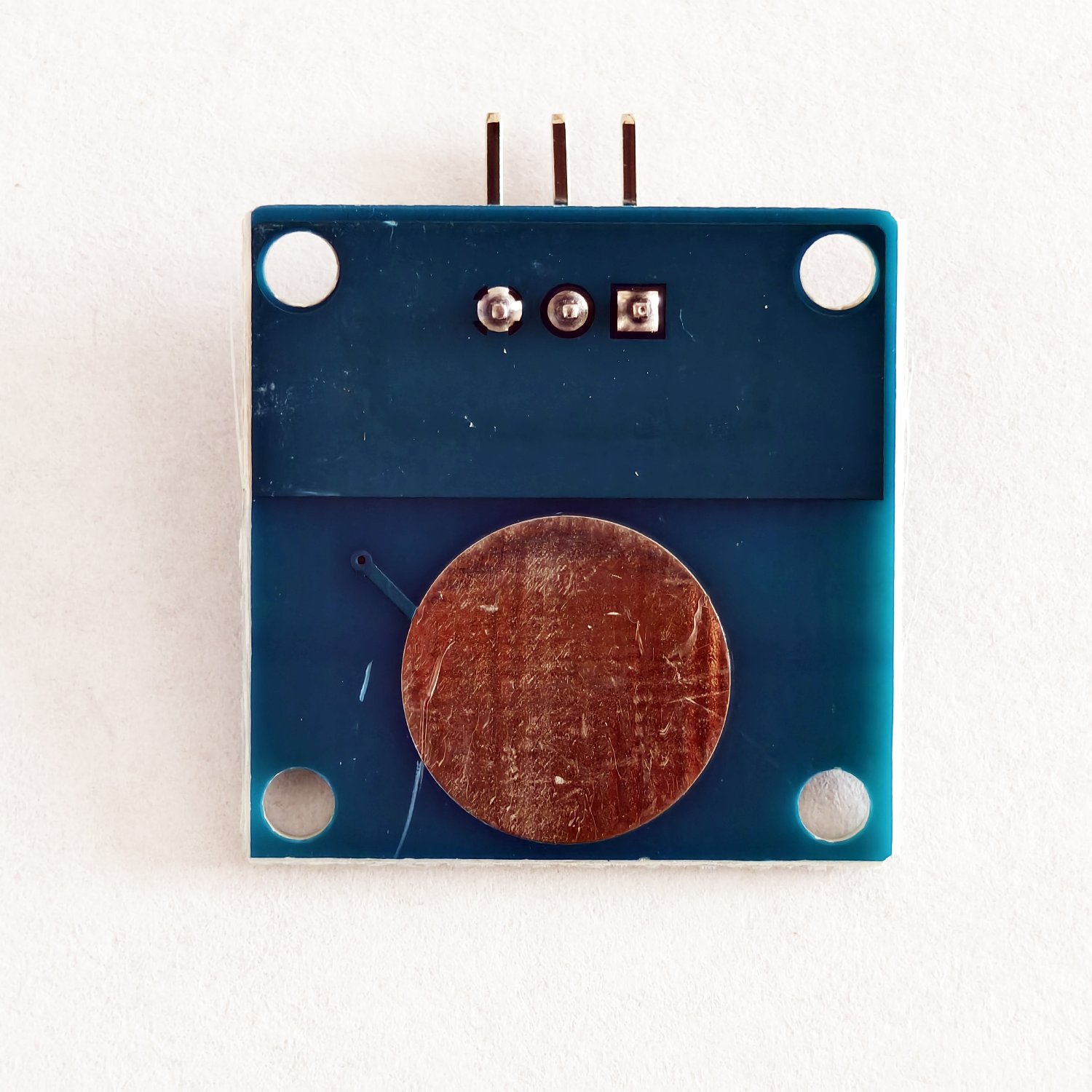

Both the front and back surfaces can serve as touch surfaces, replacing the traditional touch-sensitive buttons.
Four M2 screw positioning holes for easy installation


Action annotation: First, lightly touch the moving-type touch sensor, and then hold it for a longer period of time. This will enable the desk lamp to light up.

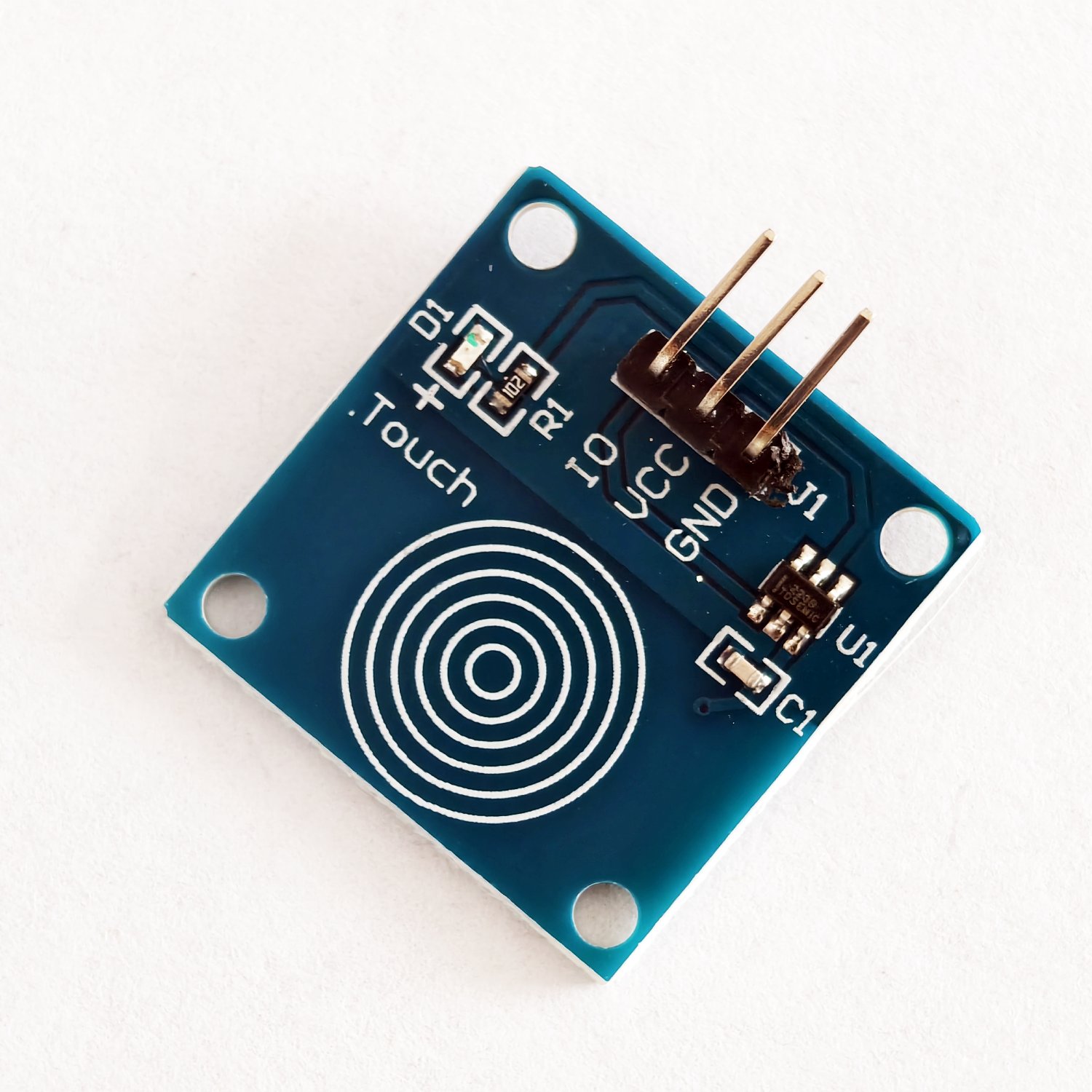

Control interface: There are 3 pins in total (GND, VCC, SIG). GND is the ground, VCC is the power supply, and SIG is the digital signal output pin.
Power indicator light: Green LED, it will light up when the power is correctly turned on.

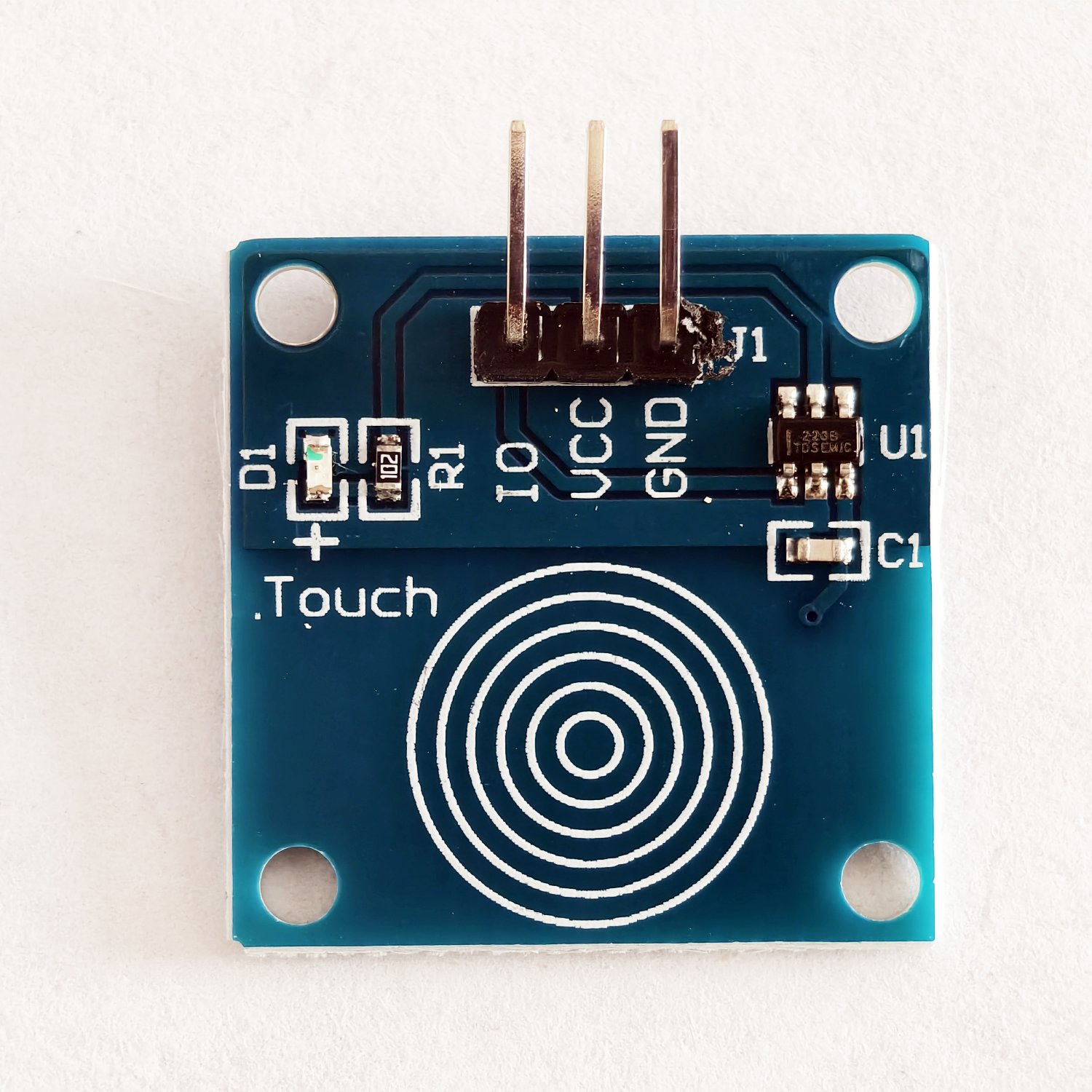

Touch area: The inner area of the icon resembling a fingerprint. A gentle touch with your finger will trigger it.

Positioning holes: 4 M2 screw positioning holes, with a diameter of 2.2mm, facilitating the installation and positioning of the module, enabling the combination of modules.
