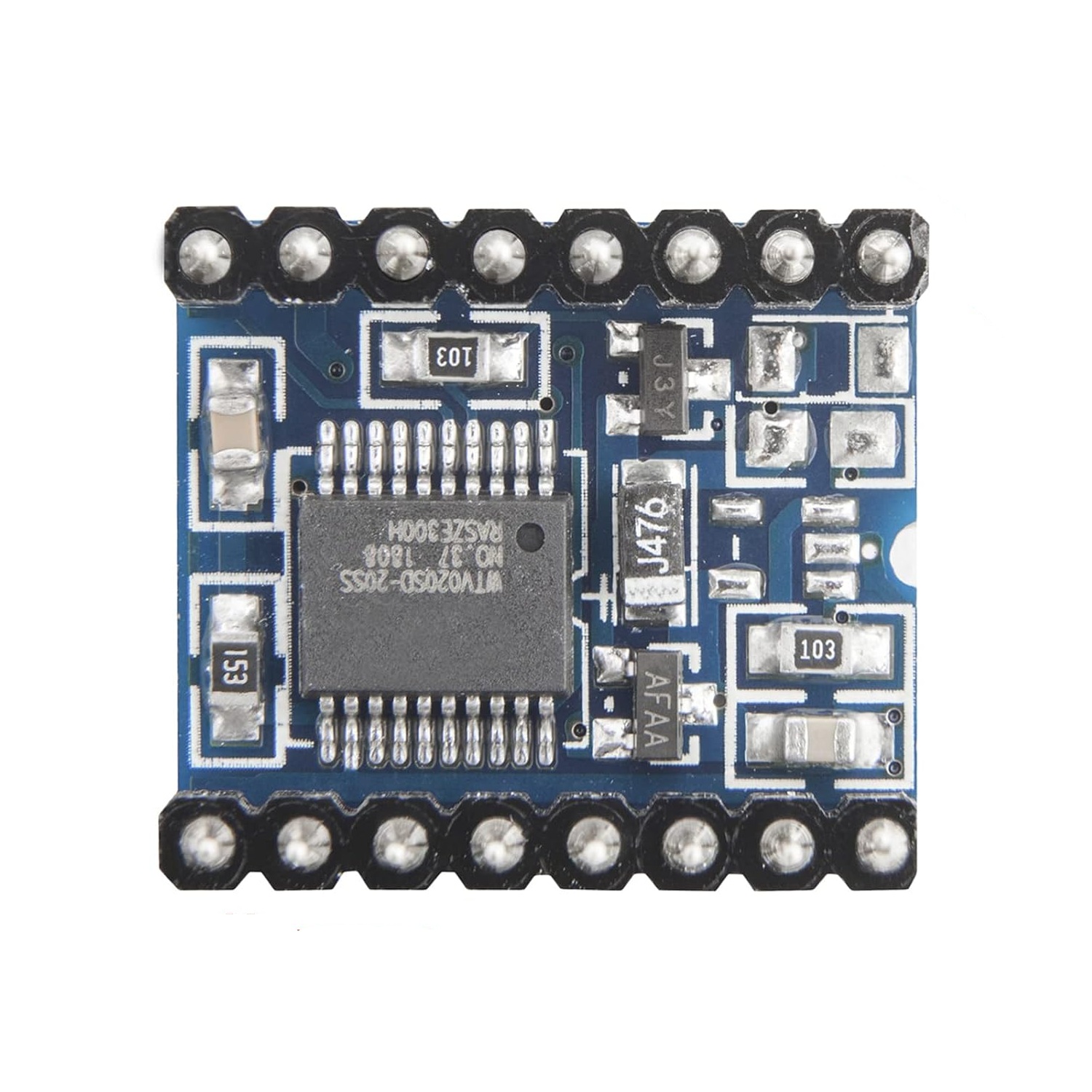

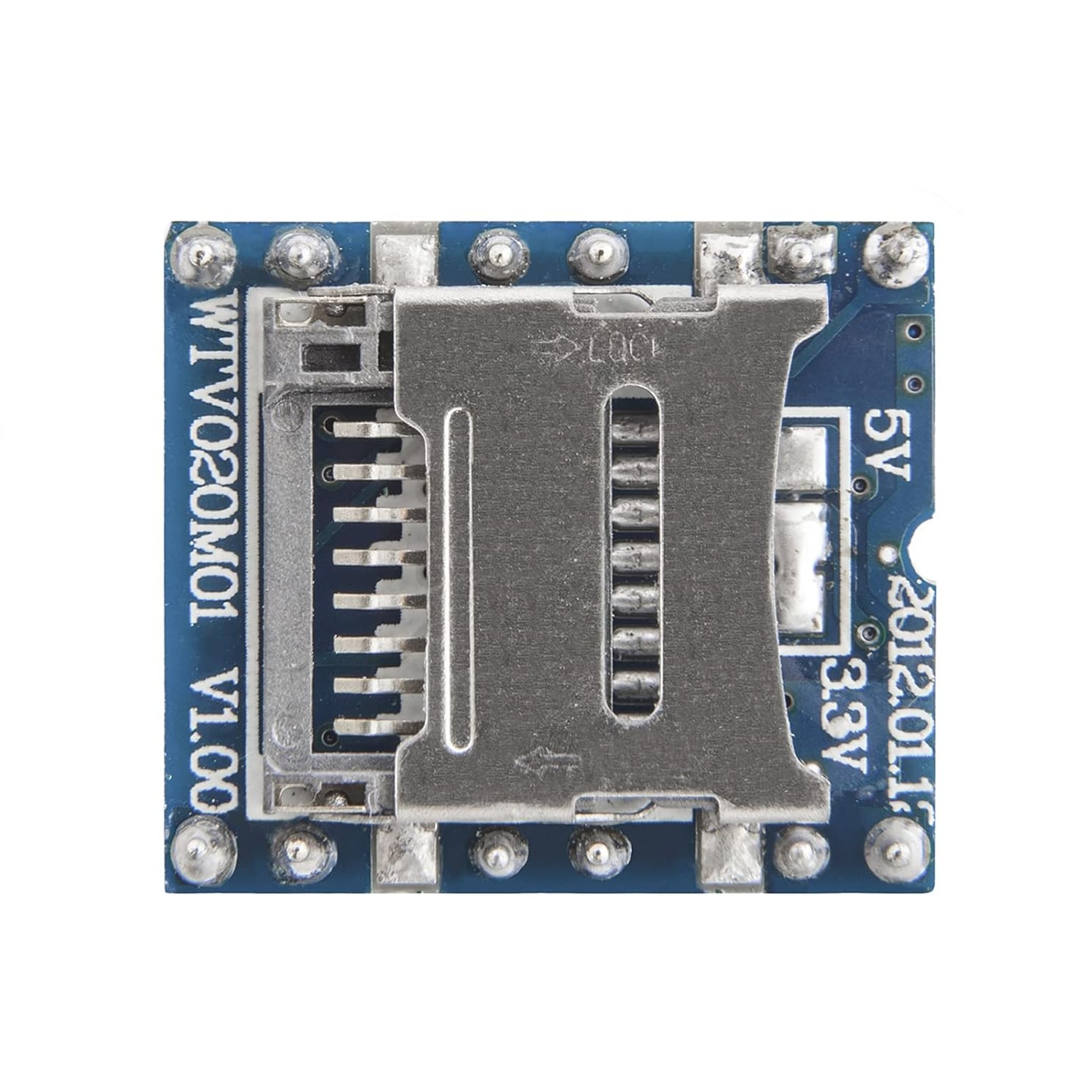

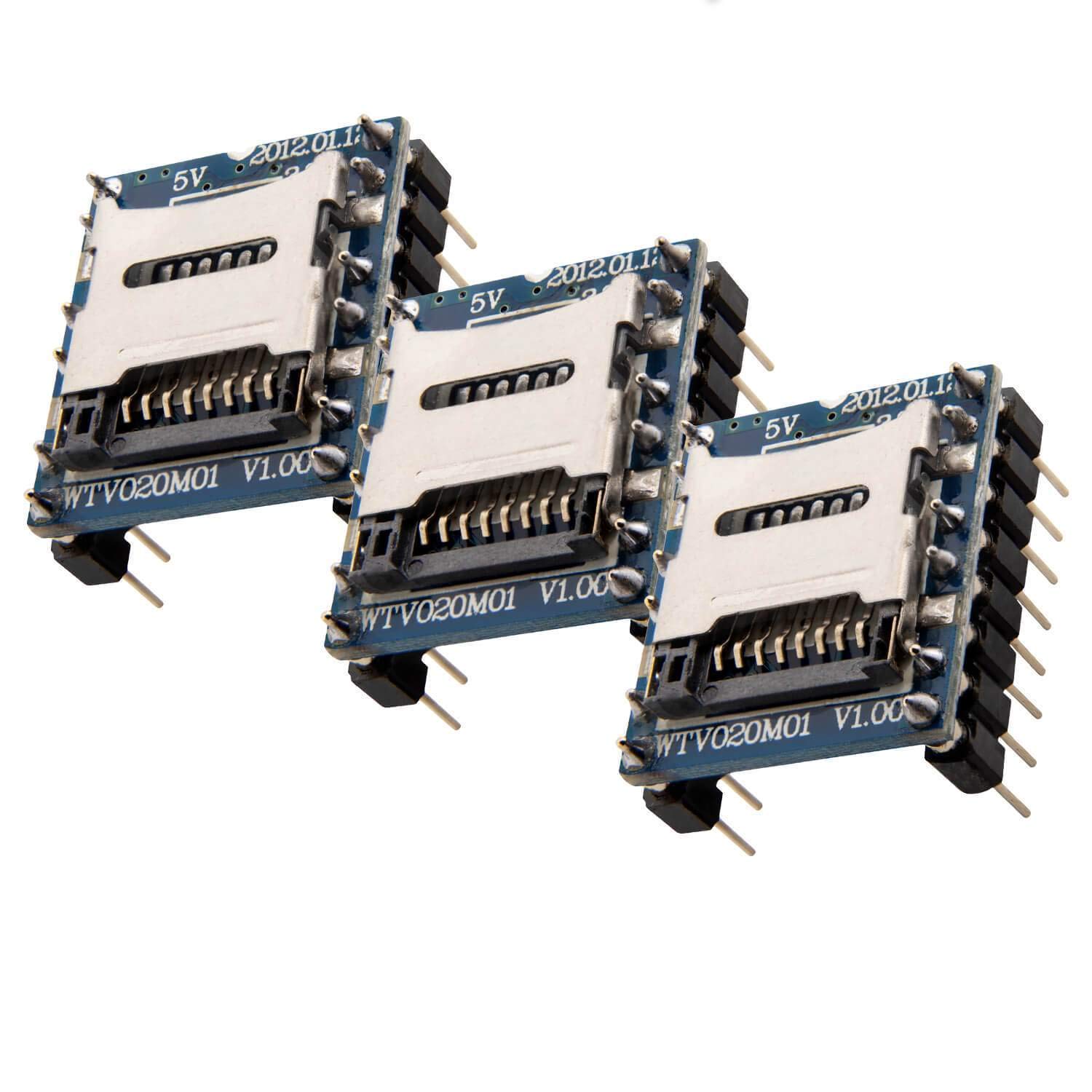

WTV020SD Voice Playback Module TF Card Storage WAV AD4 Format Serial/Button Control

1、Main control chip: WTV020SD-20S
2、Storage medium: Micro SD card (TF card), maximum support 1GB (FAT file system)
3、Supported audio formats:
4、AD4 format (4bit ADPCM): Sampling rate 6kHz ~ 36kHz
5、WAV format (PCM encoding): Sampling rate 6kHz ~ 16kHz
6、Maximum number of voices: 512 voice segments
7、Audio output: 16-bit DAC + PWM dual output
8、Operating voltage: DC 2.6 - 3.6V
9、Module size: Approximately 21mm × 18mm
10、Pin spacing: 2.54mm standard pin grid
11、Weight: Approximately 4g

Main features

1、Can work independently without a single-chip microcontroller, and the buttons directly trigger playback
2、Supports LINE_OUT to connect to a power amplifier, and can also directly drive speakers
3、The voice content update is convenient, simply copy it from the computer to the SD card
4、Supports loop playback, single-track playback, and playback of specific segments, etc.
5、Widely applied in: voice annunciators, alarm devices, intelligent toys, smart home, industrial equipment voice reminders and other scenarios
